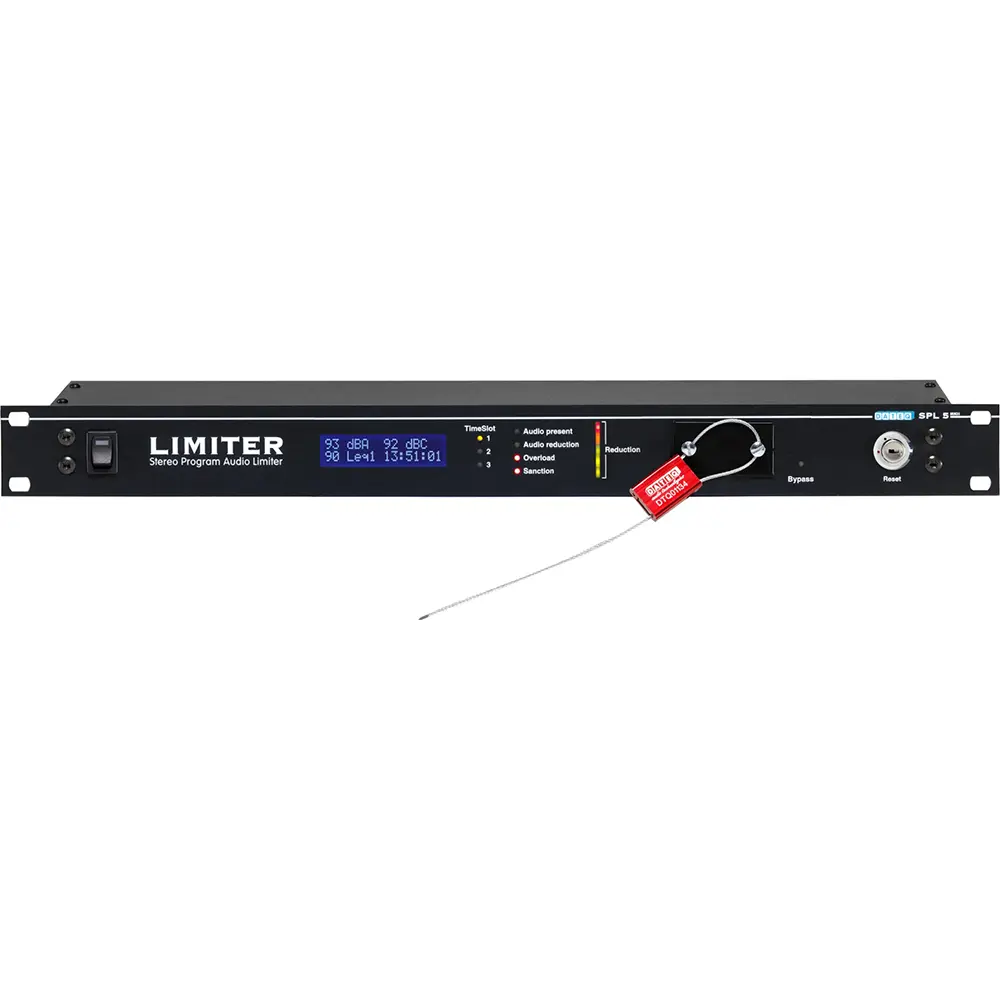

DATEQ SPL-5MK2 SOUND LIMITER

SKU 953.612DQ Categories , , , , Brand:

Description

The DATEQ SPL-5 MKII combines sound level control and decibel logging for professional audio installations. It monitors levels using the supplied DCM-5 measurement microphone and adjusts the audio output when the configured limit is exceeded.

Programmable schedules allow different sound limits throughout the day. Network connectivity supports remote monitoring and configuration through DATEQ software, while tamper detection records interference with the system.

With an optional SRL-1 stage relay, the limiter can operate a warning light and disconnect connected equipment when required.

Features

  • Automatic sound level limiting with microphone monitoring
  • dB(A), dB(C) and two configurable Leq measurements
  • Internal measurement and event logging
  • Three programmable time slots per day
  • Calendar-controlled bypass periods
  • Network access for remote monitoring and control
  • Tamper detection and protected configuration
  • Balanced stereo XLR inputs and outputs
  • Support for optional external displays
  • Supplied DCM-5 Class 2 measurement microphone

Product Documents

Product Specification

  • Product type: Stereo sound level limiter and data logger
  • Measurements: dB(A), dB(C) and two configurable Leq values
  • Microphone input: 3-pin female XLR
  • Line inputs: 2 × electronically balanced 3-pin female XLR
  • Maximum input level: +18 dBu
  • Input impedance: 50 kΩ
  • Line outputs: 2 × electronically balanced 3-pin male XLR
  • Output impedance: 50 Ω
  • Frequency response: 20 Hz–22 kHz at −1 dB
  • Signal-to-noise ratio: Greater than 100 dB
  • THD+N: Less than 0.02% (IEC-A)
  • Sound level threshold: 50–120 dBA, adjustable in 1 dB steps
  • Output correction: −50 to 0 dB, adjustable in 1 dB steps
  • Internal logging: Up to 180 days, subject to available memory
  • Data export: CSV through configuration software
  • Computer connection: USB-B
  • Network connection: RJ45 Ethernet
  • Signalling connector: 25-pin female D-sub
  • External display connection: 6.3 mm stereo jack
  • Scheduled time slots: Three per day
  • Power supply: 100–240 V AC, 50 Hz
  • Power consumption: 15 W
  • Rack mounting: 19-inch, 1U
  • Dimensions (W × H × D): 483 × 45 × 175 mm
  • Weight: 3.2 kg
  • Included microphone: DCM-5 Class 2 measurement microphone
