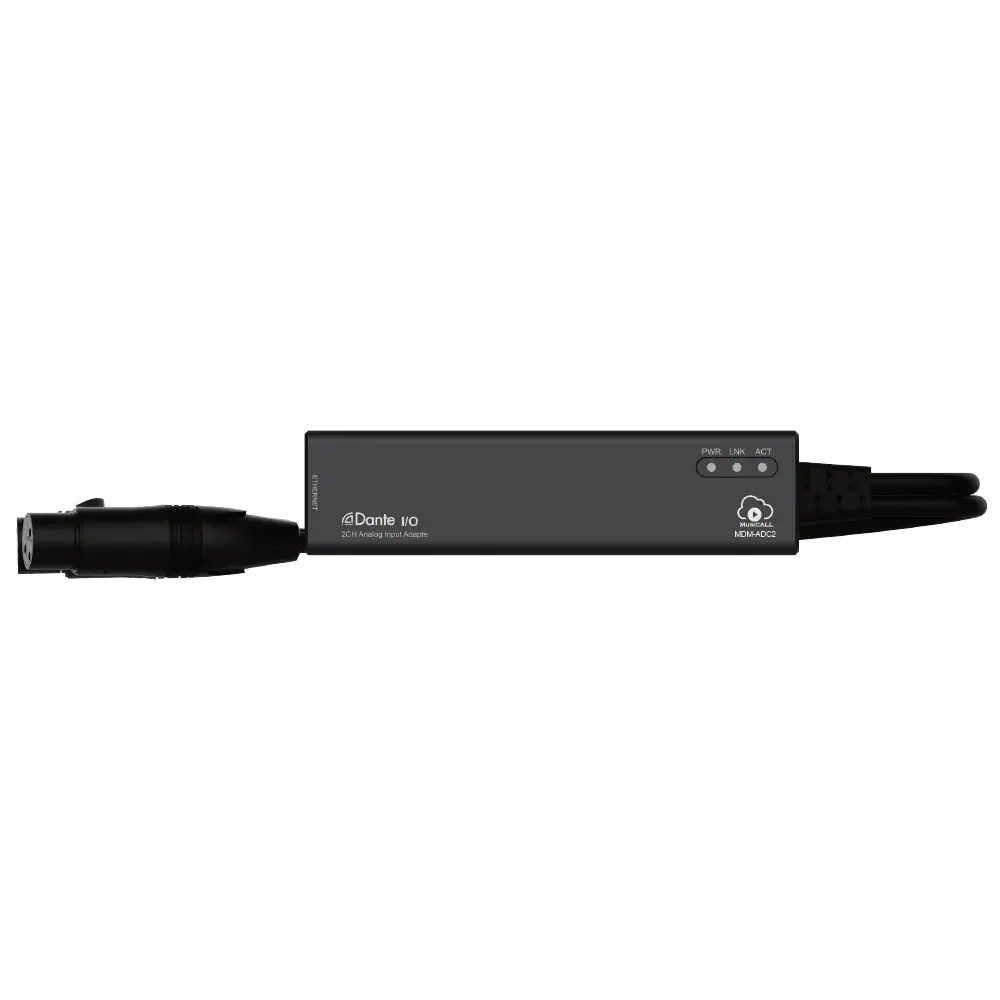

DATEQ MDM-ADC2 2x ANALOG TO DANTE CONVERTOR

SKU 953.650DQ Categories , , Brand:

Description

The DATEQ MDM-ADC2 converts two channels of analogue audio into Dante digital audio, allowing existing audio equipment to connect to a Dante network. Two female XLR inputs provide the analogue connections, while an RJ45 port carries the digital audio onto the network.

Featuring 24-bit audio at 48 kHz, a 110 dB dynamic range and low distortion, the MDM-ADC2 delivers clear audio with low latency. Its compact design makes it suitable for portable systems and permanent installations.

Power over Ethernet supplies power through the network connection, simplifying installation and reducing cabling.

Features

  • Converts two analogue audio channels to Dante
  • Two female XLR audio inputs
  • RJ45 Dante network connection
  • 24-bit audio at a 48 kHz sampling rate
  • 110 dB dynamic range
  • Dante device latency below 1 ms
  • Powered through IEEE 802.3af PoE
  • Compact design for portable and installed audio systems

Product Documents

Product Specification

  • Product type: Analogue-to-Dante audio converter
  • Analogue input channels: 2
  • Input connectors: 2 × female XLR
  • Digital output: 2 Dante audio channels
  • Network connection: RJ45
  • Sampling rate: 48 kHz
  • Bit depth: 24-bit
  • Frequency response: 20 Hz–20 kHz, ±0.2 dB
  • Dynamic range: 110 dB
  • Signal-to-noise ratio: Greater than 110 dB
  • THD+N: 0.007% at 1 kHz, +4 dBu
  • Dante device latency: Less than 1 ms
  • Power supply: Power over Ethernet, Class 1 IEEE 802.3af
