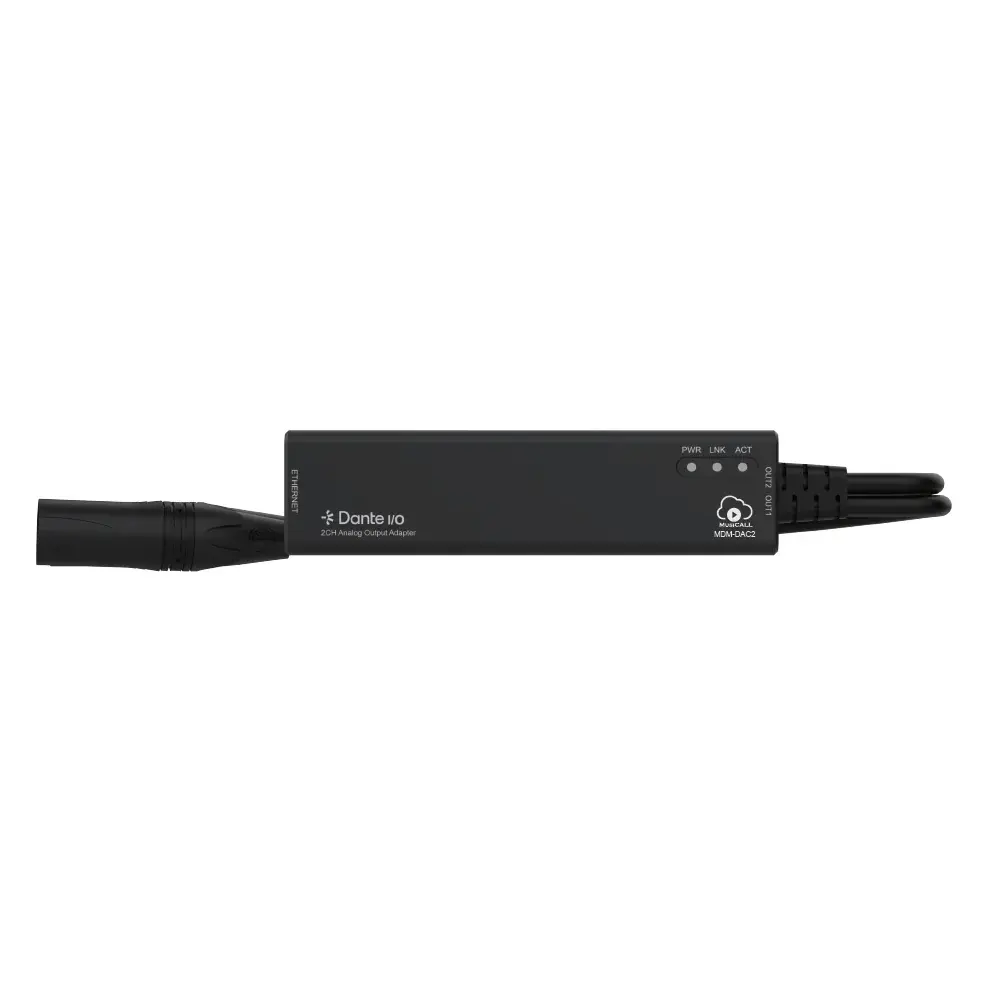

DATEQ MDM-DAC2 DANTE TO 2x ANALOG CONVERTOR

SKU 953.651DQ Categories , , Brand:

Description

The DATEQ MDM-DAC2 converts two channels of Dante digital audio into analogue audio, allowing a Dante network to connect to conventional audio equipment. An RJ45 port receives the network audio, while two male XLR connectors provide the analogue outputs. Featuring 24-bit audio at 48 kHz, a 116 dB dynamic range and low distortion, the MDM-DAC2 delivers clear audio with low latency. Its compact design makes it suitable for portable systems and permanent installations. Power over Ethernet supplies power through the network connection, simplifying installation and reducing cabling.

Features

  • Converts two Dante audio channels to analogue audio
  • Two male XLR audio outputs
  • RJ45 Dante network connection
  • 24-bit audio at a 48 kHz sampling rate
  • 116 dB dynamic range
  • Maximum output level of +18 dBu
  • Dante device latency below 1 ms
  • Powered through IEEE 802.3af PoE
  • Compact design for portable and installed audio systems

Product Specification

  • Product type: Dante-to-analogue audio converter
  • Digital input: 2 Dante audio channels
  • Analogue output channels: 2
  • Output connectors: 2 × male XLR
  • Network connection: RJ45
  • Maximum output level: +18 dBu
  • Sampling rate: 48 kHz
  • Bit depth: 24-bit
  • Frequency response: 20 Hz–20 kHz, ±0.1 dB
  • Dynamic range: 116 dB
  • Signal-to-noise ratio: 116 dB
  • THD+N: 0.001% at 1 kHz, +4 dBu
  • Dante device latency: Less than 1 ms
  • Power supply: Power over Ethernet, Class 1 IEEE 802.3af
