DATEQ SPL-D2 STAND-ALONE SOUND PRESSURE METER

SKU 953.600DQ Categories , , Brand:

Description

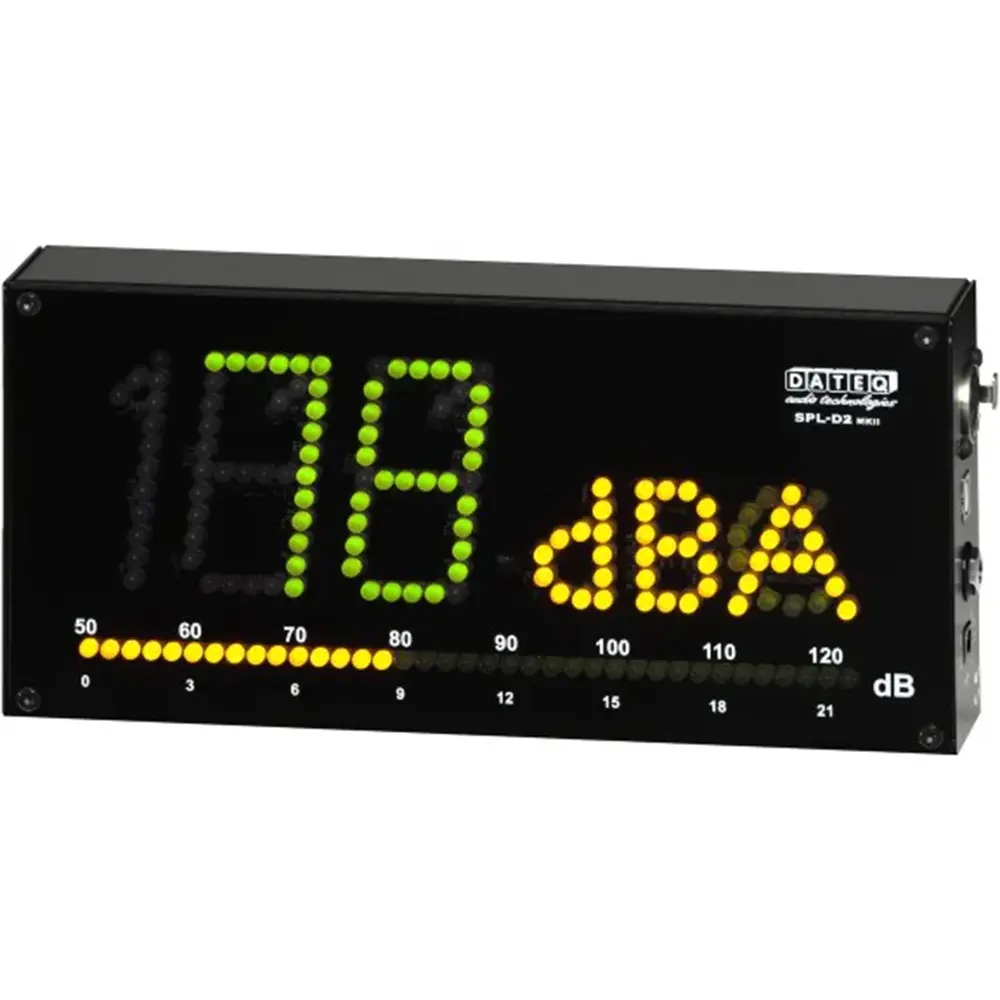

The DATEQ SPL-D2 provides a clear visual indication of sound pressure levels, helping DJs, live performers and venue operators monitor their volume. Its large LED digits turn red when an adjustable sound level threshold is exceeded, providing an immediate visual warning. Use the SPL-D2 independently with the included DCM-5 measurement microphone, or connect it to a DATEQ SPL5 limiter as an external display. The LED bar can indicate sound level or gain reduction when connected to the SPL5.

Selectable ANSI-A, ANSI-B and ANSI-C measurement curves provide flexible monitoring, while configuration software allows adjustment of display brightness, warning threshold and microphone sensitivity. Automatic dimming reduces display brightness in dark surroundings.

Features

  • Product type: Sound pressure level meter and external display
  • Display: Large LED digits with LED indicator bar
  • Measurement curves: ANSI-A, ANSI-B and ANSI-C
  • Warning indication: Digits turn red above the configured threshold
  • Display brightness: Software adjustable with automatic ambient light dimming
  • Microphone input: 3-pin female XLR, for the supplied measurement microphone
  • External display connection: 6.3 mm jack connection to the SPL5
  • Computer connection: USB
  • Measurement standard: Measurement chain designed to operate according to IEC 61672-1 Class 2 specifications
  • Power supply: 24 V DC
  • Power consumption: 9 W
  • Dimensions (W × H × D): 255 × 125 × 47 mm
  • Weight: 1 kg

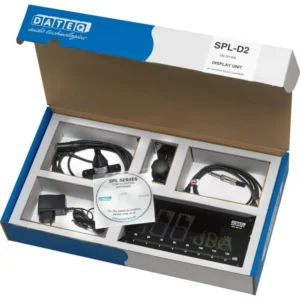

  • Included accessories: DCM-5 Class 2 measurement microphone, wall mount and DC power supply
