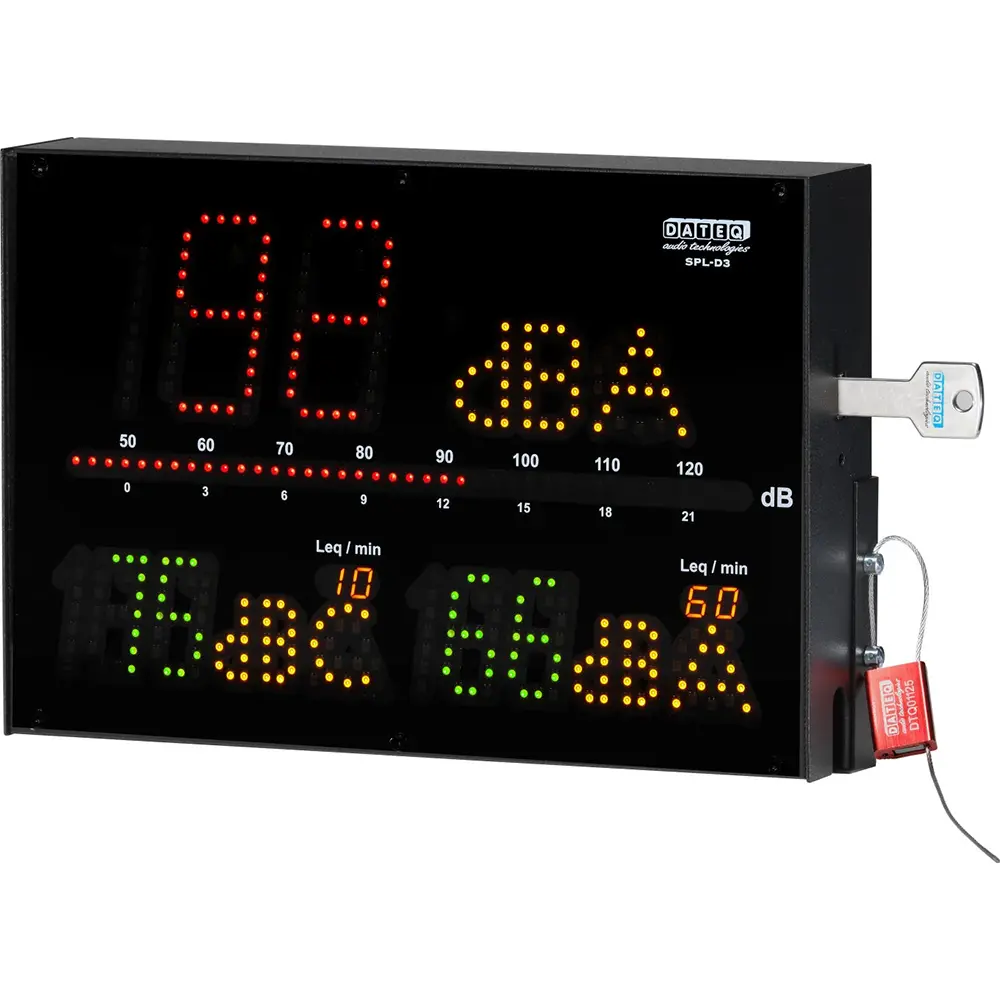

DATEQ SPL-D3 SOUND PRESSURE METER WITH DISPLAY

SKU 953.602DQ Categories , , Brand:

Description

The DATEQ SPL-D3 combines sound level measurement, a multicolour display and data logging for professional audio installations. Three independently configurable displays show sound levels, with green, orange and red indications providing clear feedback as levels approach or exceed the selected limits.

Use the SPL-D3 independently with the supplied DCM-5 measurement microphone, or alongside DATEQ SPL5MK2 and SPL6 limiters. Stored measurements can be reviewed using configuration software and exported for reporting.

Network connectivity, USB connections and Power over Ethernet support provide flexible installation options. Scheduled sound level limits, automatic display dimming and theatre mode make it suitable for venues requiring discreet monitoring and clear warnings.

Features

  • Three displays with independently selectable measurement settings
  • Green, orange and red indications for sound level status
  • Internal logging of measurements and operating events
  • USB export for reviewing and reporting measurement data
  • Ethernet connectivity with DHCP support
  • Automatic brightness adjustment for dark environments
  • Theatre mode keeps the display off until a warning or exceedance occurs
  • Programmable time slots and calendar functions
  • Supports an optional SRL-1 relay for warning lights and power interruption
  • Installer licence and password protection for configuration changes
  • Supplied with measurement microphone, mounting bracket and DC power supply

Product Documents

Product Specification

  • Product type: Sound pressure meter, multicolour display and data logger
  • Displays: Three independently configurable measurement displays
  • Display colours: Green, orange and red
  • Measurement weightings: A-weighted, C-weighted and flat
  • Equivalent sound level measurements: LAeq and LCeq with adjustable averaging time
  • Frequency response: 30 Hz–16 kHz at −1.5 dB
  • Signal-to-noise ratio: Greater than 90 dB
  • Microphone input: 3-pin female XLR for the original DCM-5 measurement microphone
  • Computer connection: USB-B
  • External storage connection: USB-A
  • Network connection: RJ45 Ethernet with DHCP support
  • Link connection: 6.3 mm stereo jack for compatible DATEQ equipment
  • External storage: FAT32-formatted USB drives up to 32 GB
  • Data export format: CSV
  • Logging resolution: 1 second
  • Measurement standard: Measurement chain designed to meet IEC 61672-1 Class 2 specifications
  • Power options: 24 V DC power supply or PoE+
  • Power consumption during normal operation: 12 W
  • Maximum power consumption: 24 W
  • Software compatibility: Windows 7, 8, 10 and 11
  • Scheduled time slots: Three per day for each display
  • Wall mounting: VESA 50 compatible
  • Dimensions (W × H × D): 282 × 192 × 55 mm
  • Weight: 2.8 kg
  • Included accessories: DCM-5 Class 2 measurement microphone, mounting bracket and DC power supply
