Adastra – ML432 1U MIC/LINE RACK MIXERS

SKU: 953.024AD

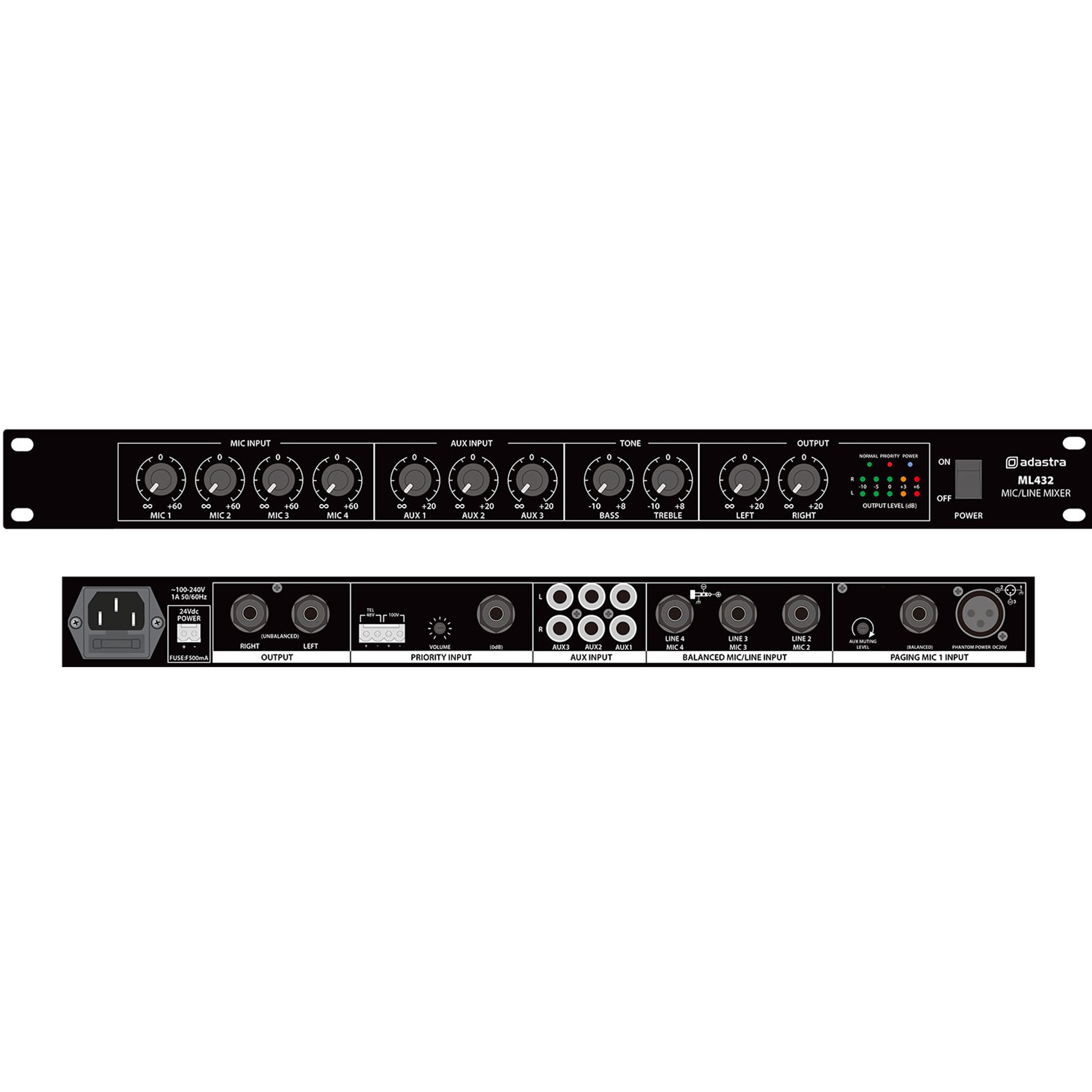

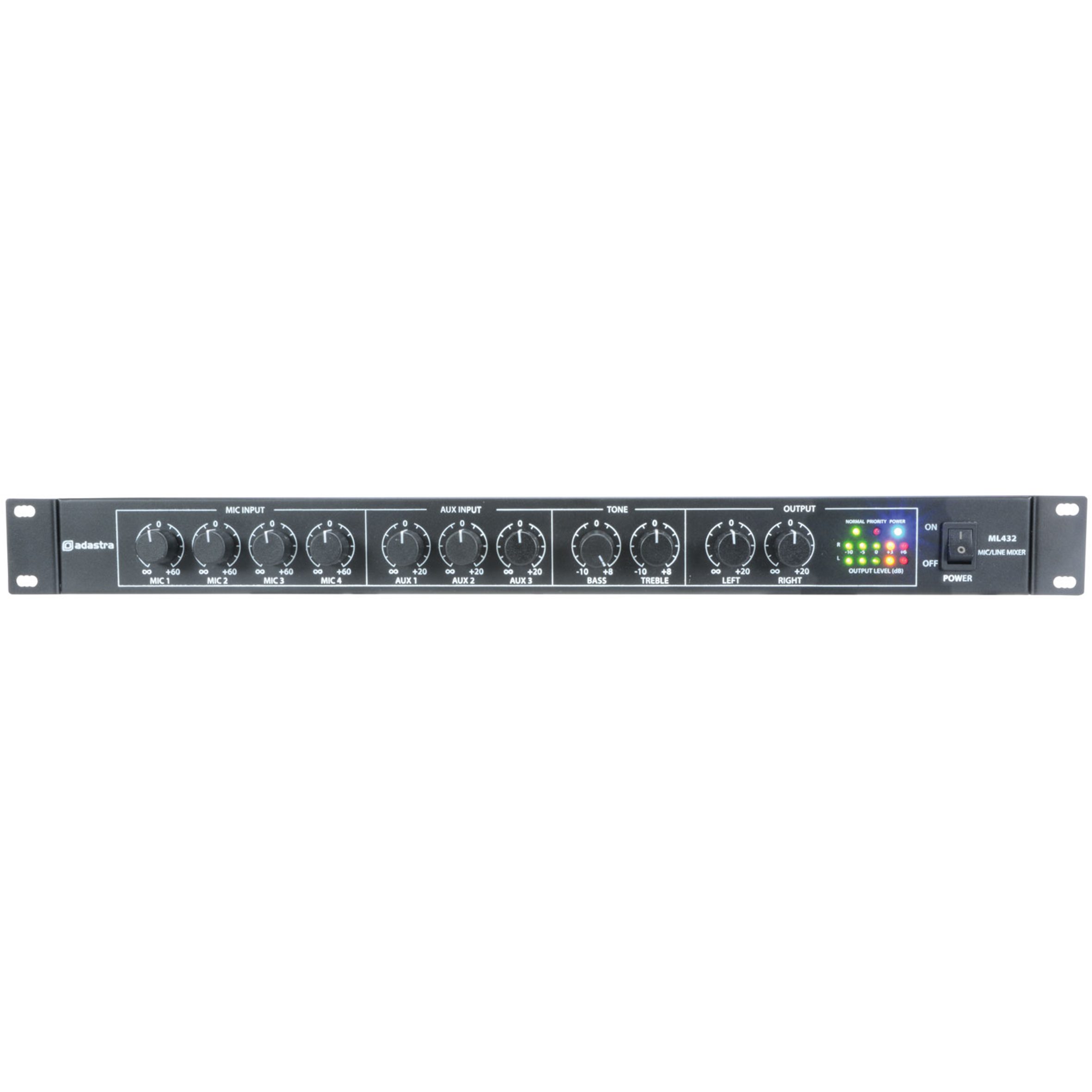

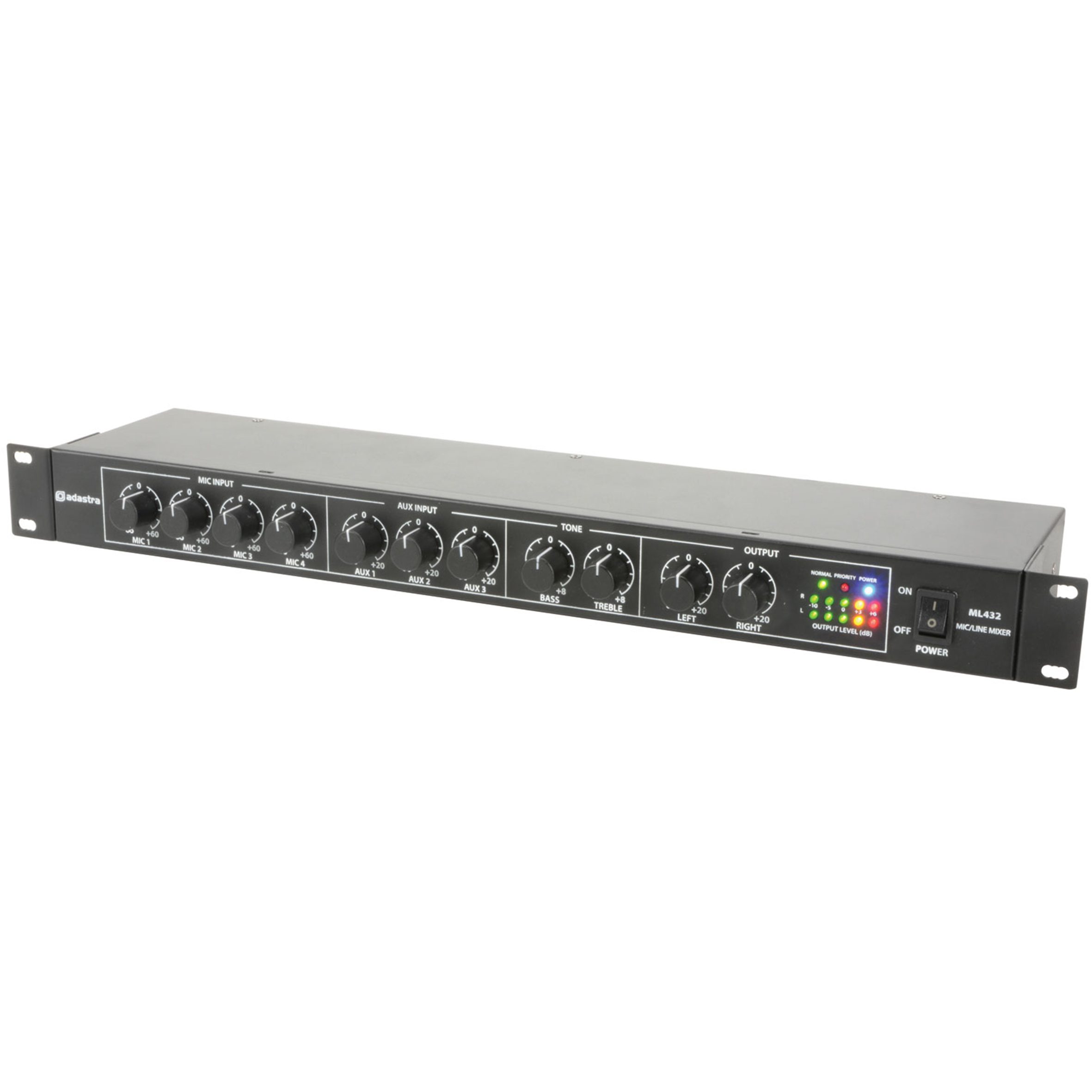

Rack-mountable 1U mixer with 4 mic inputs and 3 auxiliary inputs. Mic channel 1 has 20V phantom power and adjustable voice-over muting of auxiliary channels. An additional priority input can be connected to a line level input or an external 100V line PA system for emergency paging. Output connections are stereo jack with master bass and treble tone controls. Designed as a master or extension mixer for installed sound systems.

Login to see prices Compare Where To Buy

DESCRIPTION:

Product Description

Rack-mountable 1U mixer with 4 mic inputs and 3 auxiliary inputs. Mic channel 1 has 20V phantom power and adjustable voice-over muting of auxiliary channels. An additional priority input can be connected to a line level input or an external 100V line PA system for emergency paging. Output connections are stereo jack with master bass and treble tone controls. Designed as a master or extension mixer for installed sound systems.

SPECIFICATIONS:

  • Power supply: 100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals)
  • Fuse: T1AL 250V (mains) or F500mA (24Vdc)
  • Phantom power: +20Vdc (mic1 XLR input only)

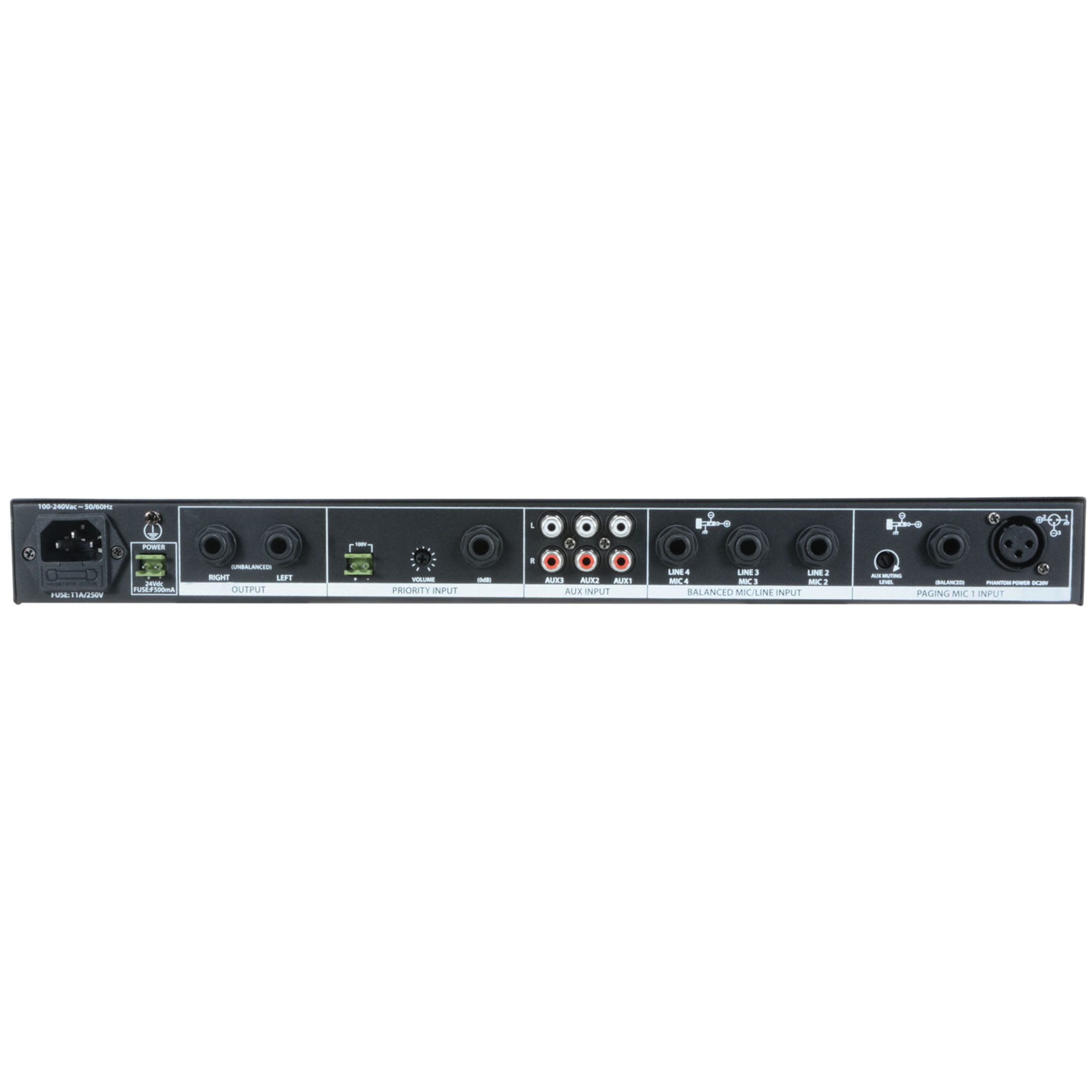

  • Inputs : mic: 4 x balanced 6.3mm jack (+XLR for mic1)
  • Inputs : aux: 3 x L+R RCA
  • Inputs : priority: Line level (6.3mm jack), 100V (terminals)
  • Outputs: Left + Right 6.3mm jack (unbalanced)
  • Controls: 4 x Mic level, 3 x Aux level, Treble, Bass, L+R output
  • Rear panel controls: Aux muting level, priority input level
  • Input impedance: 2.2k Ohms (mic/line), 10k Ohms (aux)
  • Frequency response : mic: 130Hz - 21kHz
  • Frequency response : line: 120Hz - 26kHz
  • Frequency response : aux: 50Hz - 35kHz
  • Input sensitivity : mic: -50dBV
  • Input sensitivity : line: -19dBV
  • Input sensitivity : aux: -12dBV
  • Signal to noise ratio : mic: 54dB
  • Signal to noise ratio : aux/line: 58dB
  • THD: 0.05%
  • Dimensions: 482 x 130 x 44mm
  • Weight: 1.43kg

FEATURES:

  • 4 balanced microphone inputs
  • +20V phantom power on priority mic input
  • 3 stereo aux line inputs
  • Can tap from an existing 100V PA system
  • 24Vdc power option

Packing Type

Box Printed

Packing Dimensions

44 x 482 x 130mm

Packing Weight

2.2
