FBT MUSE210LA ACTIVE LINE ARRAY SPEAKER 2x 10INCH + 2x 1INCH BLACK 600W + 300W RMS

SKU 387.730FB Categories , , Brand:

Description

MUSE 210LA is an advanced active line array module specifically designed for vertical deployment in professional sound reinforcement. It is the ideal solution for concert touring, live venues, and high-end installations requiring powerful, phase-coherent sound delivery. As part of the MUSE series, it integrates Italian acoustic design with powerful Class-D amplification and DSP, combining high SPL, lightweight construction, and precise wave control.

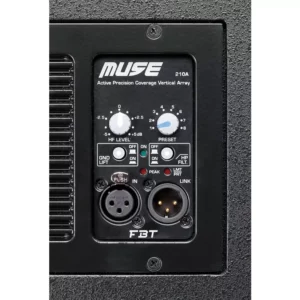

At the heart of the system are two 10” custom woofers with 2.5” voice coils and two 1” B&C compression drivers mounted on a proprietary waveguide, ensuring 90° horizontal dispersion with outstanding linearity and controlled vertical projection. Frequency response: 55Hz – 20kHz. Maximum SPL: 135dB. Internally powered by a bi-amplified Class-D module providing 600W RMS (LF) and 300W RMS (HF), with an onboard DSP offering 8 factory presets for array curvature compensation, EQ, and delay control. Rear panel includes balanced XLR input/output, rotary selector with OLED display for DSP presets, and gain control with signal/limiter LEDs.

Features

  • 2-way, compact bass-reflex line array system
  • Two 250mm (10″) woofers with 64mm (2.5″) voice coils
  • Two custom B&C HF compression drivers with 25mm (1″) throats
  • Precision waveguide delivering 90° of horizontal dispersion up to 18Khz
  • Frequency response from 55Hz to 20KHz
  • Onboard Class-D bi-amp system delivering 600Wrms and 300Wrms for LF and HF with switch-mode power supplies
  • Onboard DSP processor with 8 EQ presets, adjustable HF level of +/- 5db for accurate amplitude shading
  • Control panel with XLR input and link, preset control, HF level control, HP-filter and ground lift
  • Strong birch plywood cabinet with integrated aluminum handles, hardware and fly-ware offering adjustable angling ranging from 0° to 10° in 1° increments
  • Wide range of accessories to offer ultimate flexibility no matter whether your MUSE line array system is suspended or ground-stacked, plus a specially designed cover to guard against bad weather
  • MS-F210 FLYING BAR FOR MUSE210LA (388.340FB)

Product Documents

Product Specification

  • Built-in amplifier LF/HF: 600/300 W RMS
  • Built-in amplifier peak LF/HF: 1200/600 W
  • Frequency response: 55Hz – 20kHz -6dB
  • Low frequency woofer: 2×10 – 2.5 coil inch
  • High frequency driver: 2×1 – 1.7 coil inch
  • Maximum SPL cont/peak: 128/135 dB
  • Dispersion: 90° x 10° max dependent upon n° of element H x V
  • Input impedance: 22 Kohm
  • Crossover frequency: 1.1 KHz
  • Ac power requirements: 640 VA
  • Input connector: XLR with loop
  • Net Dimension (W x H x D): 713x296x425mm
  • Net weight (kg): 38.2
  • Transport Dimension (W x H x D): 790x375x520mm
  • Transport weight (kg): 41
