DJPOWER WP-4 BUBBLE FOG MACHINE

Enquire Now
SKU 161.449DJP Categories , Brand:

Description

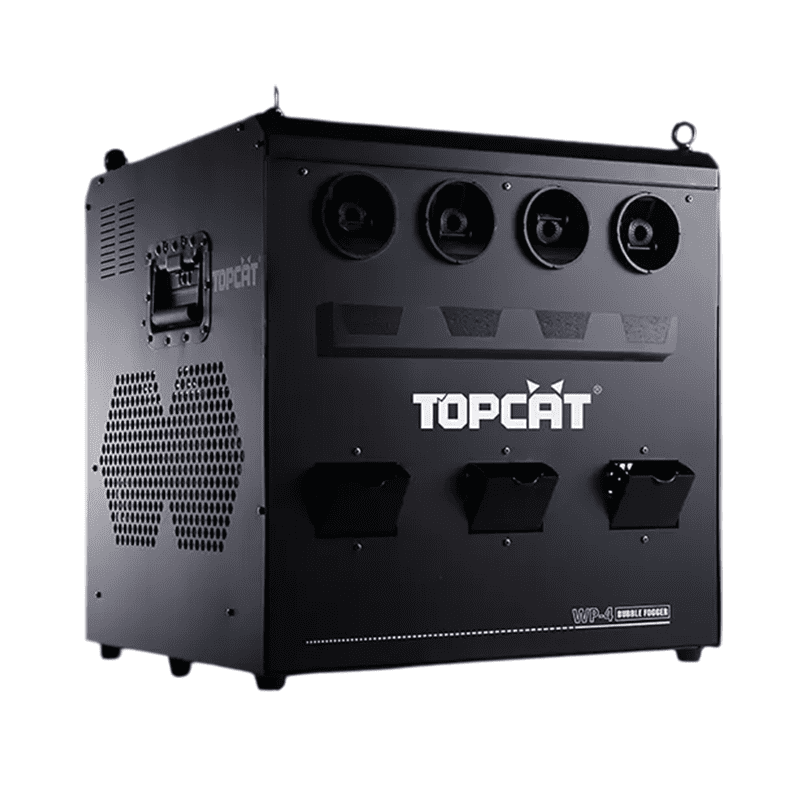

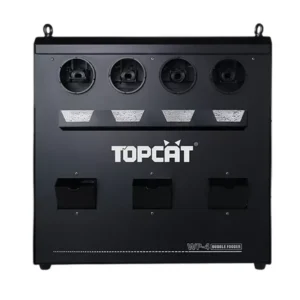

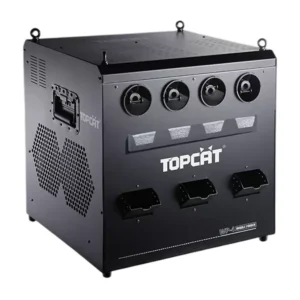

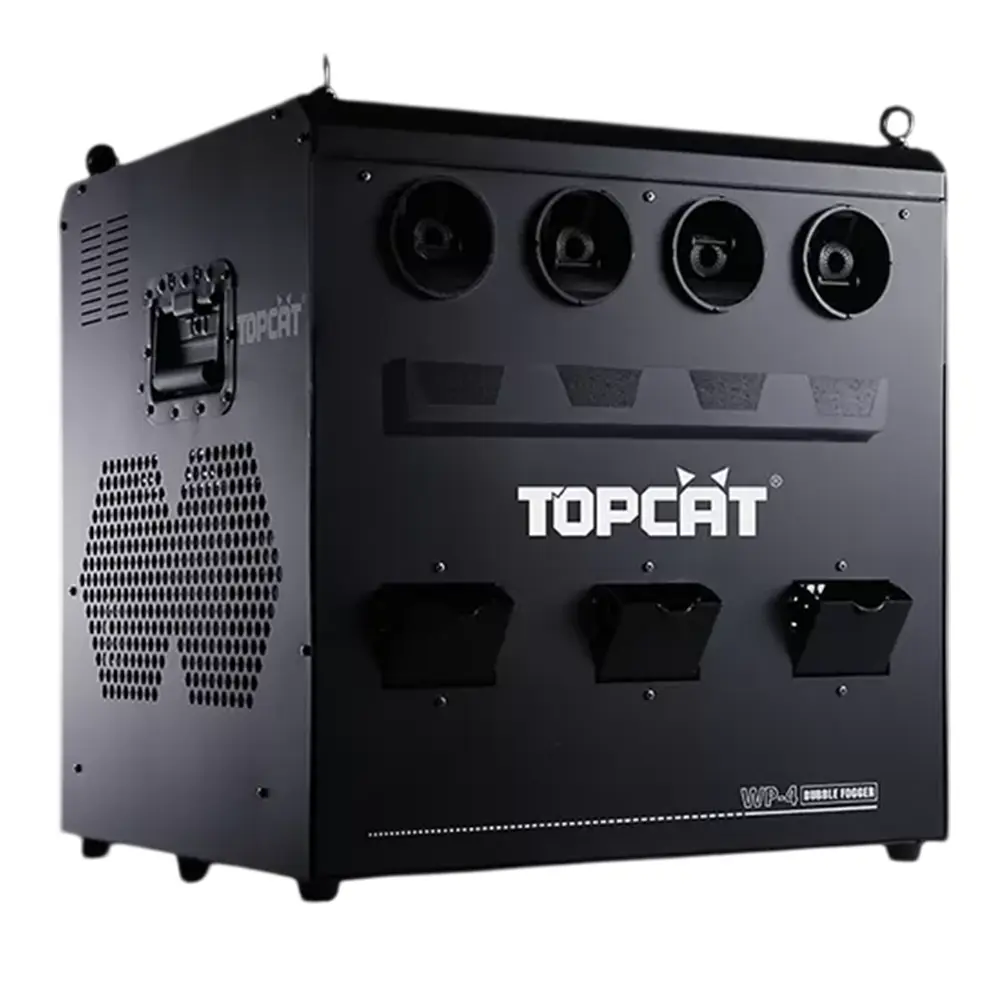

TOPCAT WP-4 is a professional bubble fog machine designed for large stages and event venues. Its four-nozzle design generates an impressive volume of bubbles filled with fog, creating spectacular visual effects. The innovative patented jet design traps fog inside the bubbles while minimizing excess fog in the air. The height and distance of the bubble output can be easily adjusted by changing the angle of the air outlet. Bubble fluid is securely stored in a sealed tank to maintain its quality over extended periods, ensuring consistent performance and a high-quality show every time.

Features

  • Innovative jet design, create massive amount of fog filled bubbles
  • Well-designed heating system releases the fog evenly and purely, no fluid dropping off
  • Three fans with adjustable angles make the fog bubble fly higher, further
  • Built-in LCD control, 3-pin and 5-pin DMX control, easy to use
  • Big size fluid tanks, long running time on full output

Product Documents

Product Specification

  • Input Voltage & Rate: 220-240 V, 50/60 Hz
  • Current Limiter Type: Breaker
  • Current Limiter Specifications: 8 A, 250 V
  • Total Power Consumption: 1,600W
  • Power Input Connector: Lockable PowerCon
  • Power Output Connector (Daisy Chained): Lockable PowerCon
  • Heat Up Time: Appr. 3.5 min
  • Adjustable Volume: √
  • Max Output Volume: Appr. 6,000 cuft/min
  • Max Output Height: Appr. 10 m
  • Max Output Distance: Appr. 10 m
  • Haze Fluid Consumption Rate: Appr. 90.9 min/L
  • Bubble Fluid Consumption Rate: Appr. 12.5 min/L

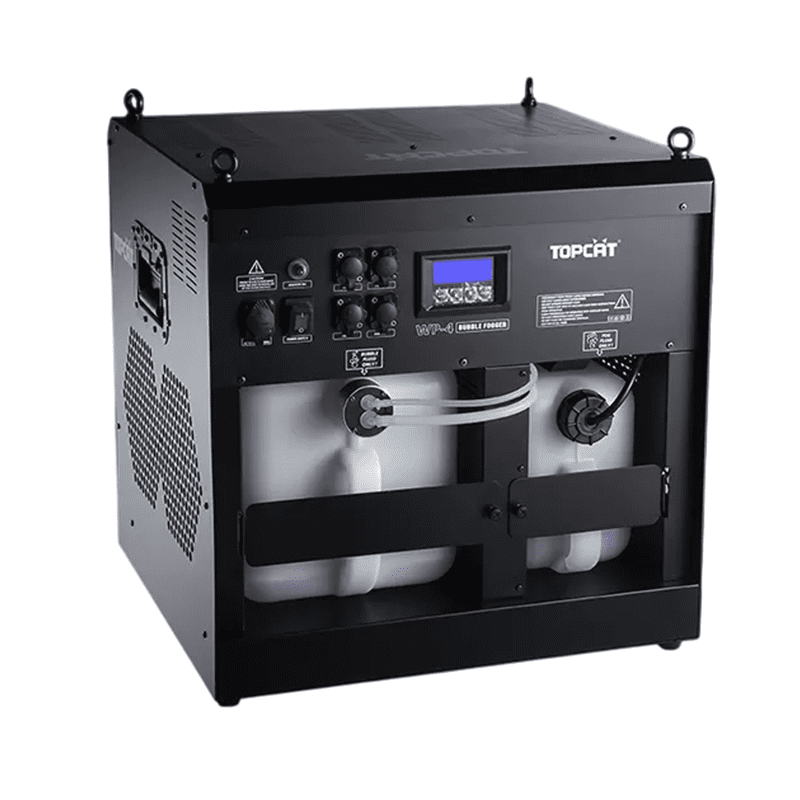

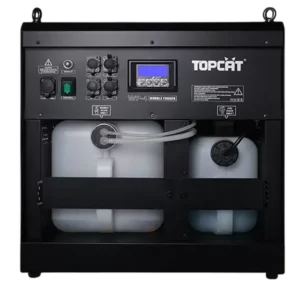

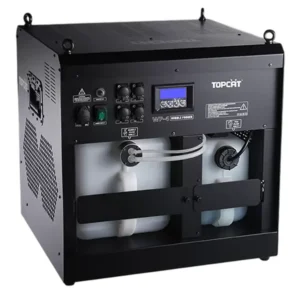

  • Haze Fluid Tank Capacity: 5 L
  • Bubble Fluid Tank Capacity: 9 L
  • Consumable: PRO-PW & PRO-C or PRO-J
  • Physical Thermostat: ×
  • Electronic Thermo-Control: √
  • Adjustable Output : √
  • Adjustable Fan Speed: √
  • No-Fluid Protection: ×
  • On-device Manual Control: LCD Control Board
  • Wireless Control: ×
  • Wired Control: ×
  • Control Protocol: DMX-512
  • DMX Channel Range: 4
  • Data Connectors: 3-pin and 5-pin XLR
  • Power Cord: √
  • Wireless Controller Model: ×
  • Net Weight: 45.4 kg
  • Gross Weight: 51.4 kg
  • Machine Dimensions:  532 × 470 × 557 mm
  • Packing Dimensions:  730 × 590 × 640 mm
