DATEQ TRI-O MIXER 6 CHANNEL 3 ZONE 19 INCH

SKU 953.644DQ Categories , , Brand:

Description

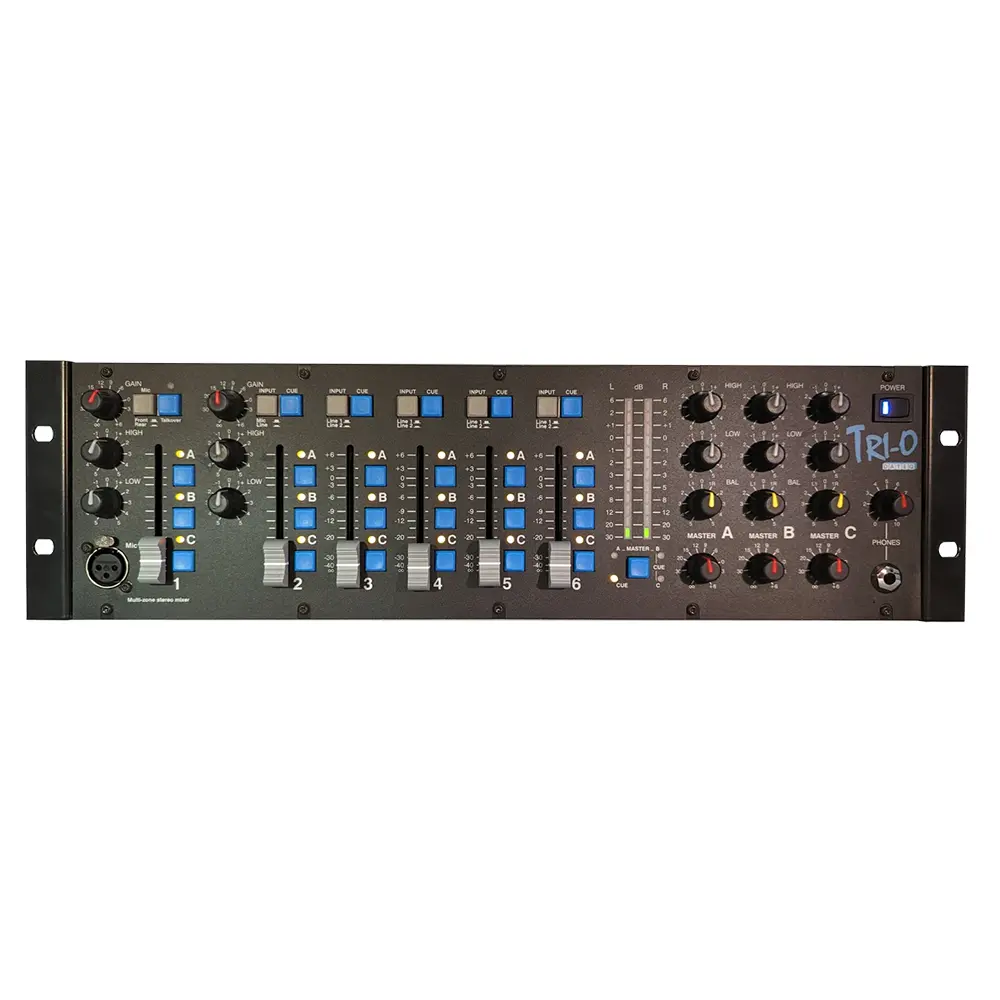

The DATEQ TRI-O is a six-channel installation matrix mixer with three independent stereo master outputs. Each input can be routed to zones A, B and C, making it suitable for pubs, dance schools, conference venues and multiroom audio systems. Each master section has independent two-band EQ, balance and volume controls. Channel 1 features voice-activated talkover, which reduces the other channels during announcements. Optional VCA output modules provide additional zones with remote volume control. A dedicated connection also supports an optional Musicall MRA2 local input panel.

Features

  • Three independent stereo master outputs
  • Two microphone channels with balanced XLR connections
  • Nine stereo line input pairs
  • Switchable talkover on channel 1
  • Two-band EQ on channels 1 and 2
  • Independent EQ, balance and volume controls for each master zone
  • Balanced XLR and unbalanced RCA master outputs
  • Headphone cue monitoring and stereo LED metering
  • Support for four optional VCA-controlled output zones
  • Connection for an optional Musicall MRA2 input panel
  • 19-inch, 3U rack-mount format



Product Documents

Product Specification

  • Product type: Six-channel, three-zone matrix mixer
  • Mixing channels: 6
  • Microphone channels: 2
  • Microphone connections: 3 × balanced XLR sockets; front/rear selection on channel 1, plus channel 2
  • Stereo line inputs: 9 RCA pairs; one on channel 2 and two each on channels 3–6
  • Standard output zones: 3, Master A, B and C
  • Input routing: Individual selection of master outputs A, B and C

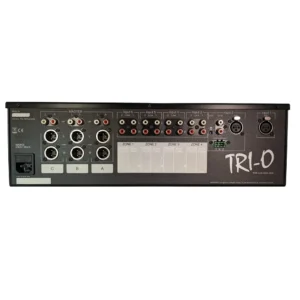

  • Master outputs: Balanced stereo XLR and unbalanced stereo RCA for each zone
  • Optional output expansion: Up to 4 additional VCA-controlled zones
  • Local input panel connection: 3-pin Phoenix for an optional Musicall MRA2
  • Talkover: Switchable, voice-activated circuit on channel 1
  • Channel 1 and 2 EQ: High ±12 dB at 10 kHz; low ±18 dB at 30 Hz
  • Master EQ: High ±12 dB at 12 kHz; low ±18 dB at 30 Hz
  • Fader length: 60 mm
  • Headphone output: 6.3 mm stereo TRS jack
  • Level meter: 2 × 12-segment LED display
  • Microphone-to-master frequency response: 15 Hz–25 kHz at −1 dB
  • Line-to-master frequency response: 10 Hz–30 kHz at −1 dB
  • THD+N: 0.01% nominal
  • Operating mains supply: 230 V AC, 50 Hz
  • Rack mounting: 19-inch, 3U
  • Dimensions (W × H × D): 483 × 132 × 110 mm, excluding connectors
  • Net weight: 3.5 kg
