DATEQ DDA-43DT AMPLIFIER CLASS D DSP NETWORK

SKU 953.630DQ Categories , , Brand:

Description

The DATEQ DDA-43DT is a four-channel Class D power amplifier combining Dante network audio, analogue inputs and integrated DSP. It delivers 450 W per channel into 4 Ω or 300 W per channel into 8 Ω, with bridged operation supporting 70 V and 100 V speaker systems. Selectable input priorities provide backup switching between analogue and Dante sources. FIR processing and adjustable output limits help installers configure the amplifier for different loudspeaker systems. An IPS colour display provides real-time monitoring of power, current, voltage, temperature and impedance. MusicAllDSP software allows configuration and control of multiple amplifiers through network, USB or serial connections.

Features

  • Four-channel Class D amplification
  • Four Dante network audio input channels
  • Analogue and Dante input priority with backup switching
  • Supports 4 Ω and 8 Ω loudspeakers
  • Supports 70 V and 100 V systems through bridged operation
  • Integrated DSP with EQ, FIR filtering, delay and matrix mixing
  • Noise gate, compressor and limiter processing
  • Adjustable maximum power, voltage and current for each channel

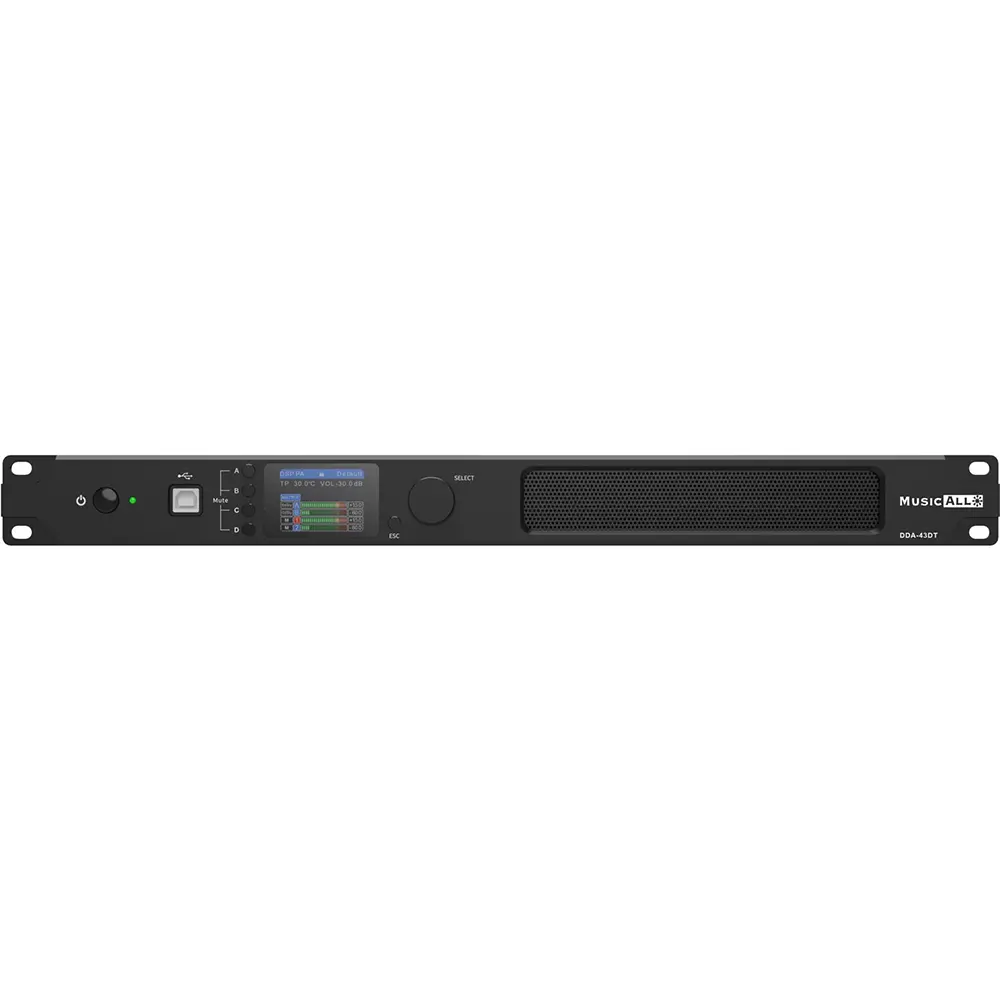

  • IPS colour display with real-time operating information

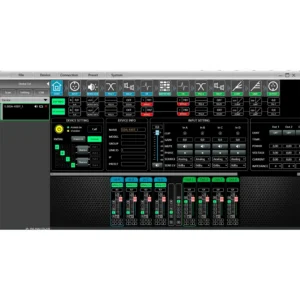

  • MusicAllDSP software control with recallable presets
  • RS232, RS485 and GPIO support for system integration
  • Thermal, electrical and short-circuit protection

Product Documents

Product Specification

  • Product type: Network DSP power amplifier
  • Amplifier class: Class D
  • Amplifier channels: 4
  • Output power at 4 Ω: 4 × 450 W
  • Output power at 8 Ω: 4 × 300 W
  • Bridged output power at 8 Ω: 2 × 900 W
  • 100 V output power: 2 × 900 W in bridge mode
  • 70 V output power: 2 × 612.5 W in bridge mode
  • Minimum load per channel: 4 Ω

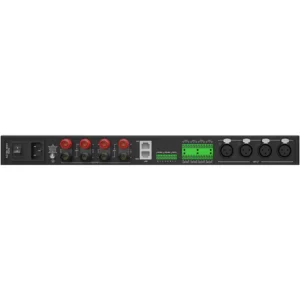

  • Analogue inputs: 4 × XLR and 4 × Phoenix
  • Dante inputs: 4 channels
  • Speaker outputs: Binding post terminals
  • Line-level link outputs: 4 × Phoenix
  • Selectable input sensitivity: 0 dBu or +6 dBu
  • Maximum input level: +8 dBu at 0 dBu sensitivity; +14 dBu at +6 dBu sensitivity
  • Signal-to-noise ratio: 97 dB
  • Frequency response: 20 Hz–20 kHz, ±0.5 dB at 1 W into 8 Ω
  • THD+N: Less than 1% at 1 W into 8 Ω
  • Sampling rate: 48 kHz
  • Bit depth: 24-bit
  • Display: 320 × 240-pixel IPS colour display
  • Control connections: RJ45 Ethernet, USB and RS232/RS485
  • Control software: MusicAllDSP
  • Software compatibility: Windows 7, 8, 10 and 11, 32-bit or 64-bit, with Microsoft .NET Framework 4.0
  • Power supply: 100–240 V AC, 50/60 Hz
  • Dimensions (W × H × D): 485 × 44.5 × 305 mm
  • Net weight: 4 kg
