DATEQ CREW DJ MIXER 7 CHANNEL

Description

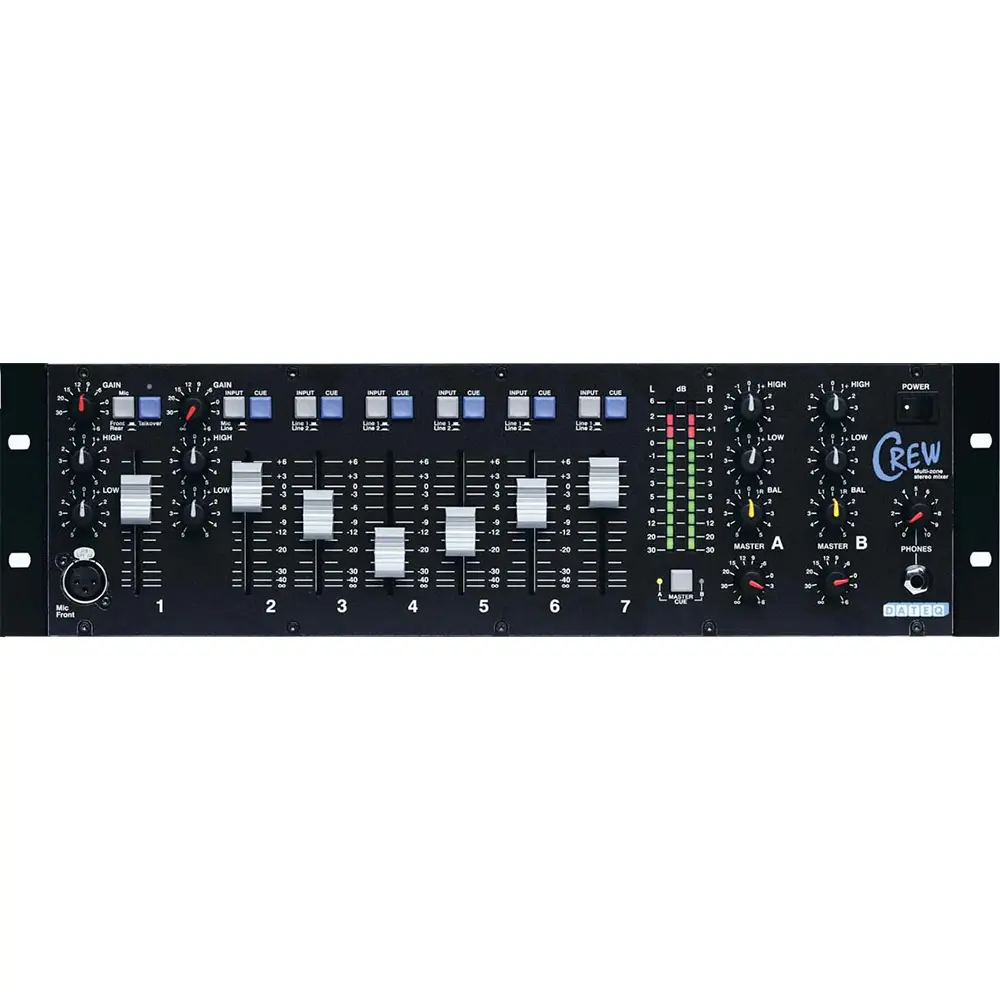

The DATEQ CREW is a seven-channel installation mixer for pubs, dance schools, conference venues and multizone audio systems. It provides three microphone connections and eleven stereo line inputs distributed across seven mixing channels. Channel 1 features voice-activated talkover, which reduces the other channels during announcements. Two independent master sections provide tone, balance and volume controls, while balanced XLR outputs on Master A support longer cable runs. Two output zones are supplied as standard. Up to four optional zone modules can be added, with external volume control for each additional zone.

Features

  • Product type: Seven-channel installation mixer
  • Mixing channels: 7
  • Microphone connections: 3 × balanced XLR across channels 1 and 2
  • Stereo line inputs: 11 × stereo RCA pairs
  • Microphone input impedance: 3 kΩ nominal
  • Line input impedance, channel 2: 12 kΩ nominal
  • Line input impedance, channels 3–7: 7 kΩ nominal
  • Standard output zones: 2, Master A and Master B
  • Optional zone expansion: Up to 4 additional output zones

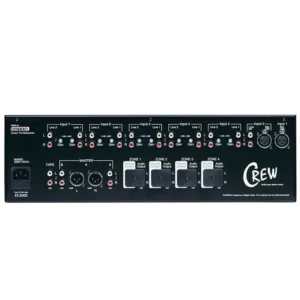

  • Master A outputs: Balanced stereo XLR and unbalanced stereo RCA
  • Master B outputs: Unbalanced stereo RCA
  • Recording output: Stereo RCA
  • Headphone output: 6.3 mm stereo TRS jack
  • Channel 1 and 2 EQ: High ±12 dB at 10 kHz; low ±18 dB at 30 Hz
  • Master EQ: High ±12 dB at 12 kHz; low ±18 dB at 30 Hz
  • Fader length: 60 mm
  • Level meter: 2 × 12-segment LED display
  • Microphone-to-master frequency response: 15 Hz–25 kHz at −1 dB
  • Line-to-master frequency response: 10 Hz–30 kHz at −1 dB
  • THD+N: 0.01% nominal
  • Power supply: 220–240 V AC, 50 Hz
  • Power consumption: 20 VA
  • Rack mounting: 19-inch, 3U
  • Dimensions (W × H × D): 483 × 132 × 110 mm, excluding connectors
  • Net weight: 3.5 kg
