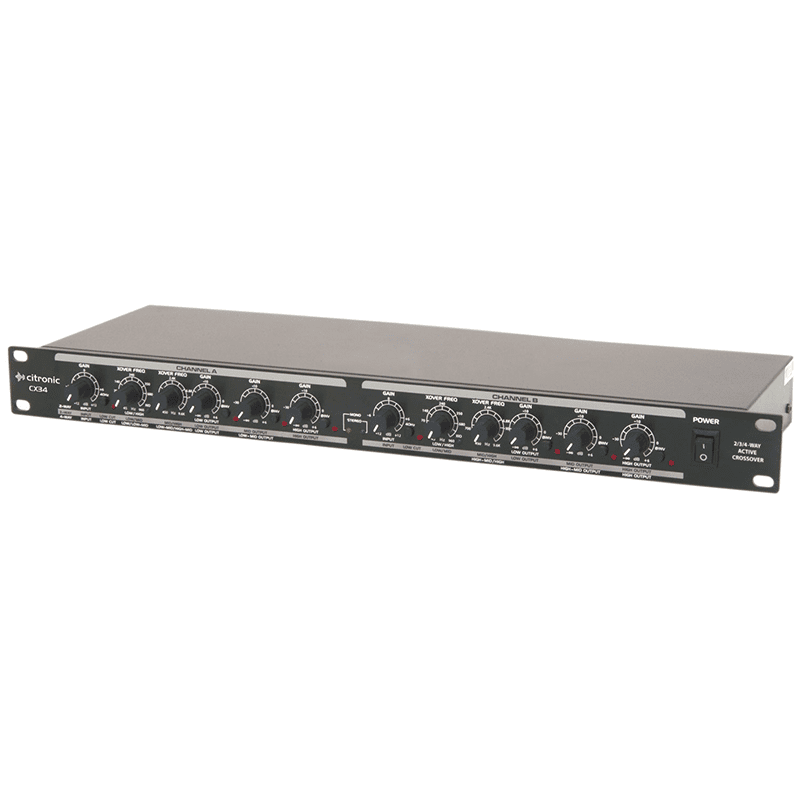

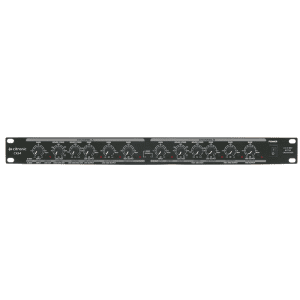

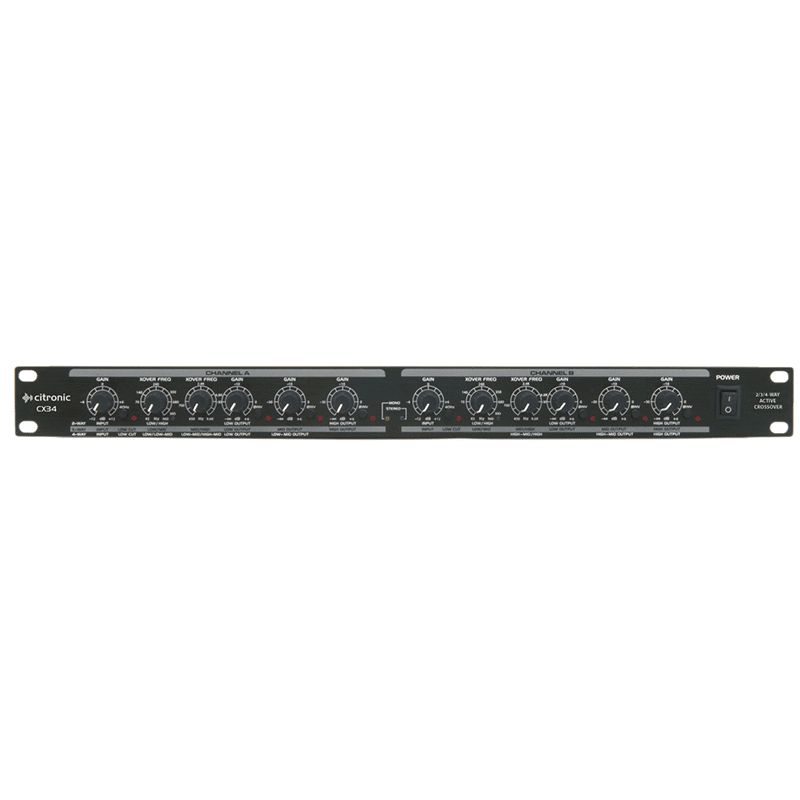

CITRONIC – CX34 ACTIVE CROSSOVER

SKU: 170.932

The CX34 is a 2 or 3-way stereo or 4-way mono active crossover designed to split frequencies so that low frequencies are delivered to the amp driving the sub cabinets and mid/top frequencies are delivered to the amp driving the mid/top frequency cabs. This type of system is more efficient and delivers more accurate sound quality, especially in larger PA systems.

Login to see prices Where To Buy

DESCRIPTION:

Product Description

The CX34 is a 2 or 3-way stereo or 4-way mono active crossover designed to split frequencies so that low frequencies are delivered to the amp driving the sub cabinets and mid/top frequencies are delivered to the amp driving the mid/top frequency cabs. This type of system is more efficient and delivers more accurate sound quality, especially in larger PA systems.

SPECIFICATIONS:

  • Power supply: 115/230Vac, 50/60Hz (IEC)
  • Input impedance : balanced: 50k ohms
  • Input impedance : unbalanced: 25k ohms
  • Output impedance: 200 ohms
  • Crossover ranges: 45-960Hz (switchable 10x) or 450Hz-9.6kHz
  • Filter slope: 24dB/octave
  • Frequency response: 20Hz - 20KHz, +0/-0.5dB
  • Signal to noise ratio: >90dB
  • THD: <0.004% @ +4dBu, 1kHz
  • Dimensions: 482 x 44 x 170mm
  • Weight: 2.5kg

FEATURES:

  • 2 or 3-way stereo, 4-way mono crossover
  • 19" rack mountable
  • Linkwitz-Riley 24dB/octave, state variable
  • Continuously adjustable cutoff frequencies
  • 40Hz ultra-low frequency cut
  • Phase invert function

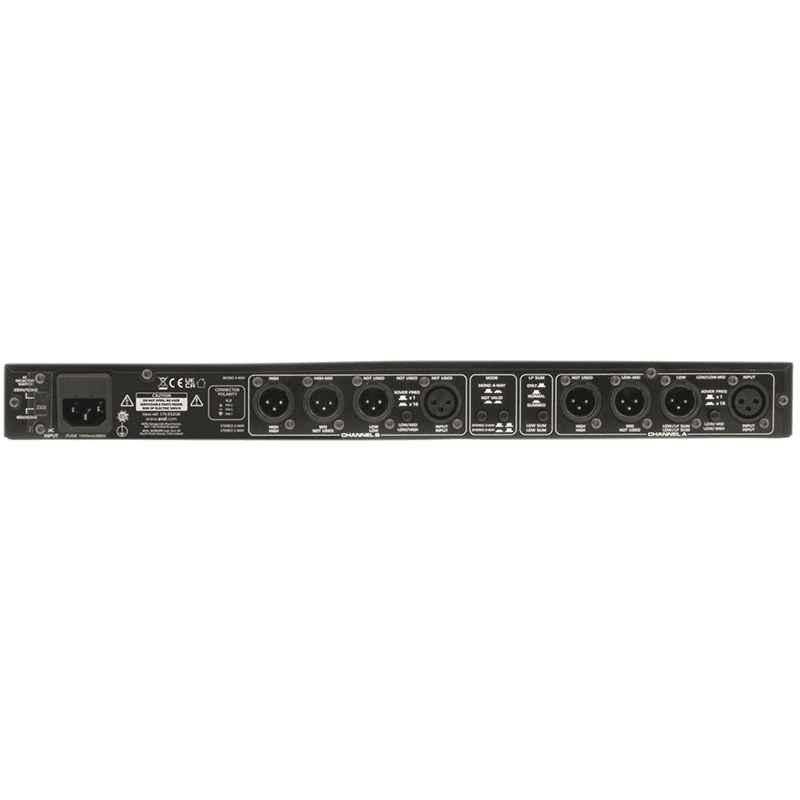

  • Inputs and outputs via XLR

Packing Type

Box Printed

Packing Dimensions

95 x 560 x 250mm

Packing Weight

2
