CITRONIC – CEQ231 DUAL 31-BAND GRAPHIC EQ

SKU: 170.926

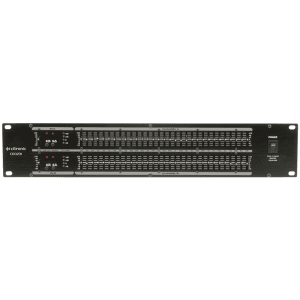

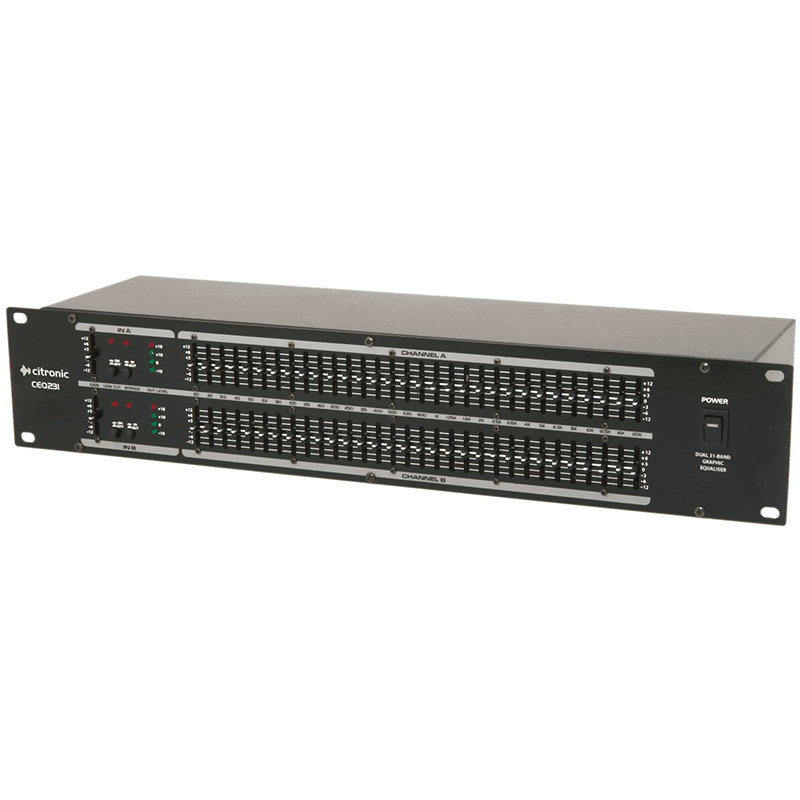

The CEQ231 is a 19″ 2U rack mounted dual 31-band graphic equaliser, which allows the adjustment of labelled frequencies via the individual cut/boost faders. Up to 12dB of cut or boost for frequencies ranging from 20Hz to 20kHz for ultimate EQ control.

Login to see prices
Category:

DESCRIPTION:

Product Description

The CEQ231 is a 19″ 2U rack mounted dual 31-band graphic equaliser, which allows the adjustment of labelled frequencies via the individual cut/boost faders. Up to 12dB of cut or boost for frequencies ranging from 20Hz to 20kHz for ultimate EQ control.

SPECIFICATIONS:

  • Power supply: 115/230Vac, 50/60Hz (IEC)
  • Frequency response: 20Hz-20kHz
  • Input impedance : balanced: 40k ohms
  • Input impedance : unbalanced: 20k ohms
  • Output impedance : bal/unbal: 330 ohms
  • Channel separation: >50dB
  • Signal to noise ratio: >102dB
  • THD: 0.005%
  • Dimensions: 482 x 88 x 139mm
  • Weight: 3.3kg

FEATURES:

  • 2 x 31-band 1/3 octave ISO spacing
  • RF filtered servo-balanced inputs
  • Constant Q each band
  • Bypass switch for EQ comparison
  • Low-cut switch each channel
  • Gain control each channel
  • LED VU meters
  • 19" rackmount 2U

Packing Type

Box Printed

Packing Dimensions

120 x 550 x 220mm

Packing Weight

3.8
