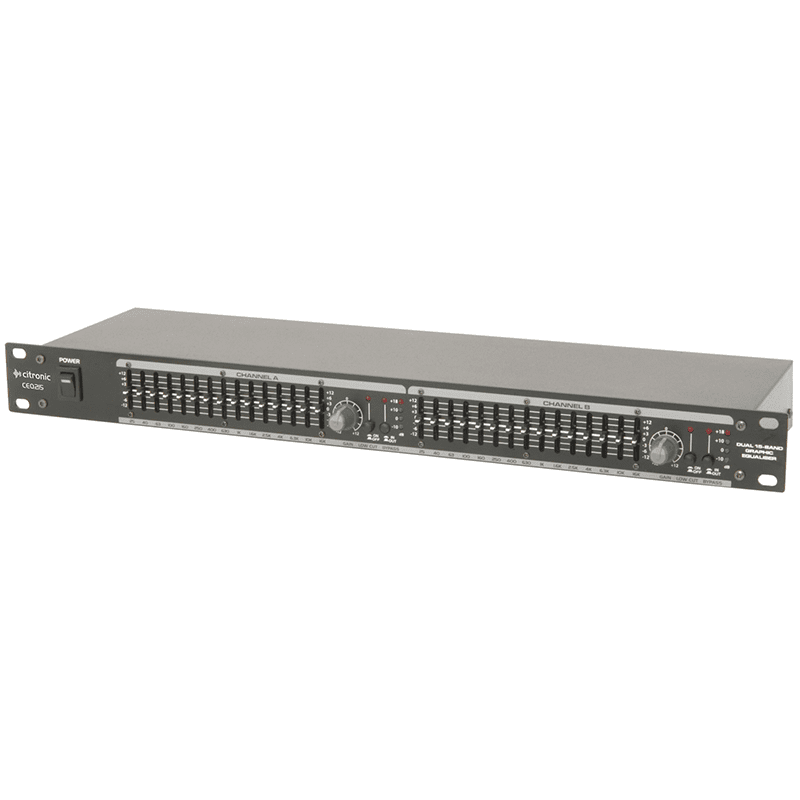

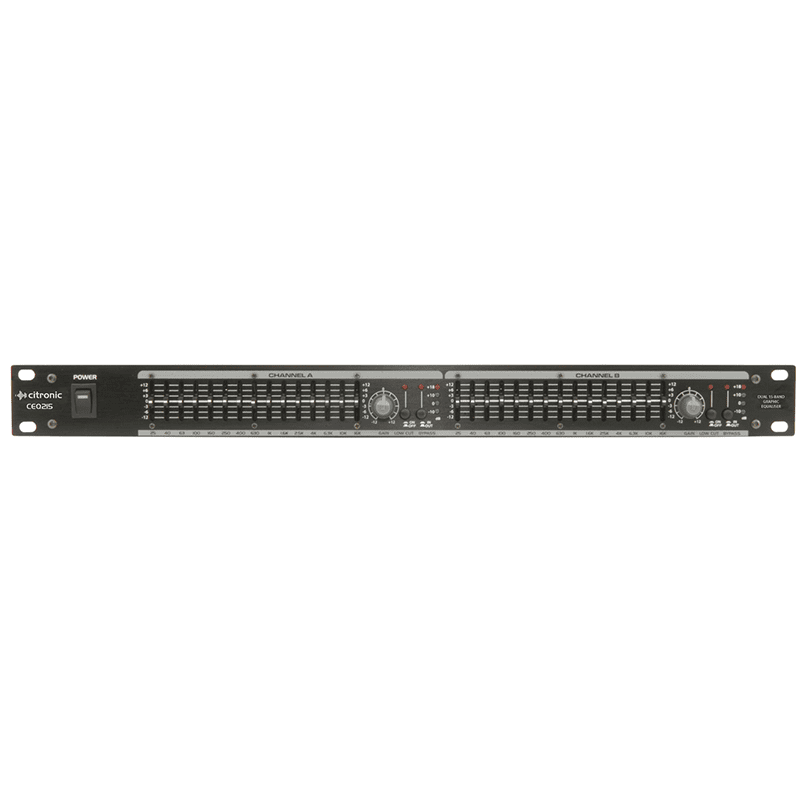

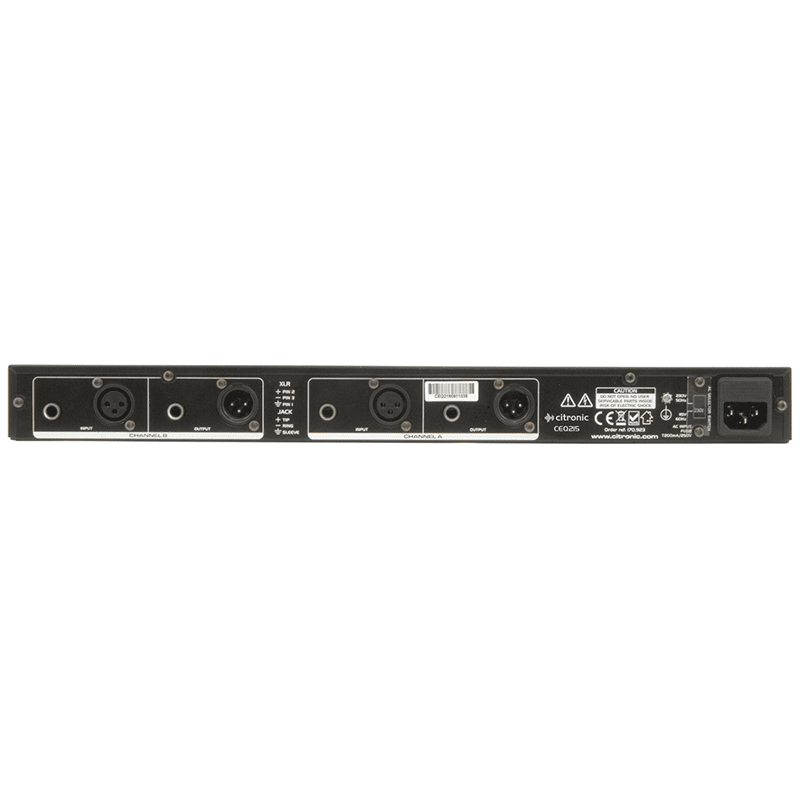

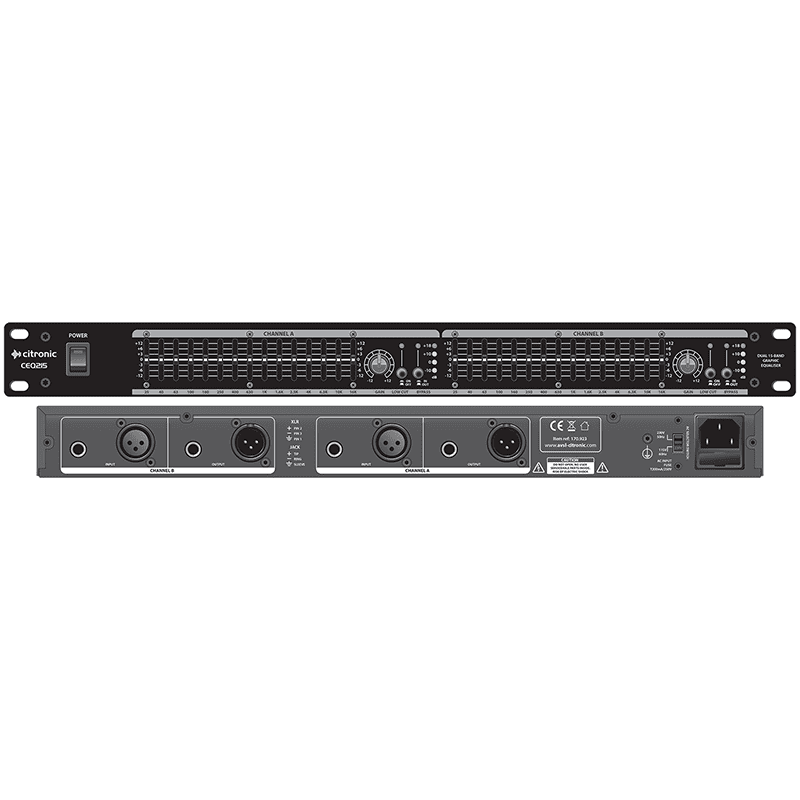

CITRONIC – CEQ215 DUAL 15-BAND GRAPHIC EQ

SKU: 170.923

The CEQ215 is a 19″ rack mounted dual 15-band graphic equaliser, which allows the adjustment of labelled frequencies via the individual cut/boost faders. Up to 12dB of cut or boost for frequencies ranging from 25Hz to 16kHz for accurate audio spectrum control.

Login to see prices Compare Where To Buy

DESCRIPTION:

Product Description

The CEQ215 is a 19″ rack mounted dual 15-band graphic equaliser, which allows the adjustment of labelled frequencies via the individual cut/boost faders. Up to 12dB of cut or boost for frequencies ranging from 25Hz to 16kHz for accurate audio spectrum control.

SPECIFICATIONS:

  • Power supply: 115/230Vac, 50/60Hz (IEC)
  • Frequency response: 20Hz-20kHz
  • Input impedance : balanced: 40k Ohms
  • Input impedance : unbalanced: 20k Ohms
  • Output impedance : bal/unbal: 330 Ohms
  • Channel separation: >50dB
  • Signal to noise ratio: >102dB
  • THD: 0.005%
  • Dimensions: 482 x 44 x 138mm
  • Weight: 2.0kg

FEATURES:

  • 2 x 15-band 2/3 octave ISO spacing
  • RF filtered servo-balanced inputs
  • Constant Q each band
  • Bypass switch for EQ comparison
  • Low-cut switch each channel
  • Gain control each channel
  • LED VU meters
  • 19" rackmount 1U

Packing Type

Box Printed

Packing Dimensions

95 x 560 x 250mm

Packing Weight

2.5
