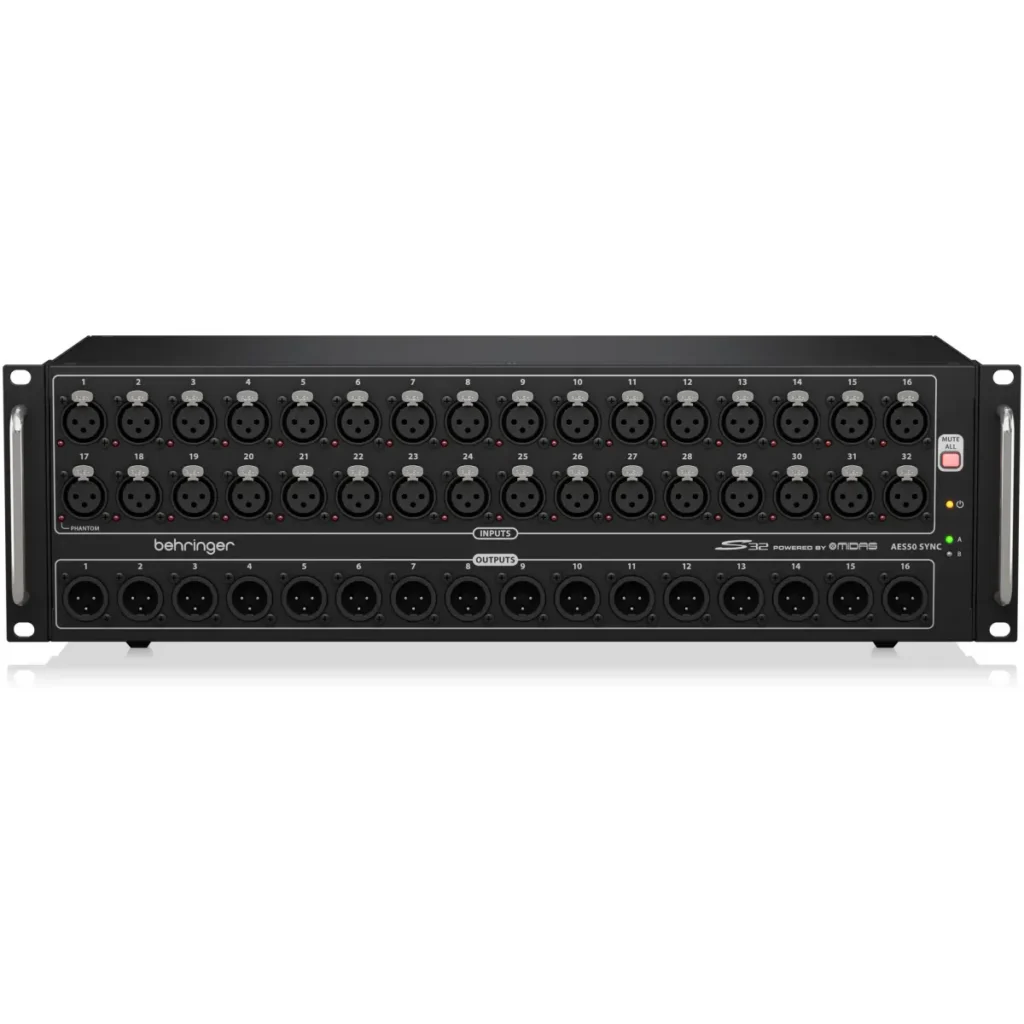

BEHRINGER S32 STAGE BOX

Enquire Now
SKU BEHS32 Categories , , Brand:

Description

I/O Box with 32 Remote-Controllable Midas Preamps, 16 Outputs and AES50 Networking featuring Klark Teknik SuperMAC Technology

Features

  • 32 Midas-designed, fully programmable mic preamps for audiophile sound quality
  • 16 analog, servo-balanced XLR outputs
  • AES50 network ports featuring Klark Teknik’s SuperMAC networking capability for ultra-low jitter and latency
  • ULTRANET Connectivity for Behringer’s P16 personal monitoring system for in-ear applications
  • Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability
  • Automatic AES50 stage-split mode when connected between Behringer X32 Series FOH and monitor consoles
  • Dual AES50 ports for cascading additional S16, SD16 or SD8 stage boxes-no merger or router required
  • 2 AES-3 ports (AES/EBU), for directly connecting PA system controllers with digital inputs
  • Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK connectors
  • Mute All function for quietly patching any inputs on stage
  • MIDI In/Out for bi-directional communication between Behringer X32 Series console and on-stage MIDI devices
  • Remote operation via shielded CAT5e cable up to 330 ft / 100 m length
  • USB connector for system updates via PC
  • “Planet Earth” switching power supply for maximum flexibility (100 – 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
  • “Built like a tank” yet compact, all-steel 3U rack-mount chassis

Product Documents

Product Specification

  • Inputs: 32 remote-controlled MIDAS microphone preamps
  • Outputs: 16 balanced XLR outputs
  • Networking: AES50 digital audio with ultra-low latency
  • Connectivity: Up to 100 m over one CAT5e cable
  • Expansion: Can be cascaded with S32, S16 or SD16 stageboxes
  • Monitoring: ULTRANET connection for P16 monitoring systems
  • Digital I/O: ADAT and AES/EBU digital outputs
