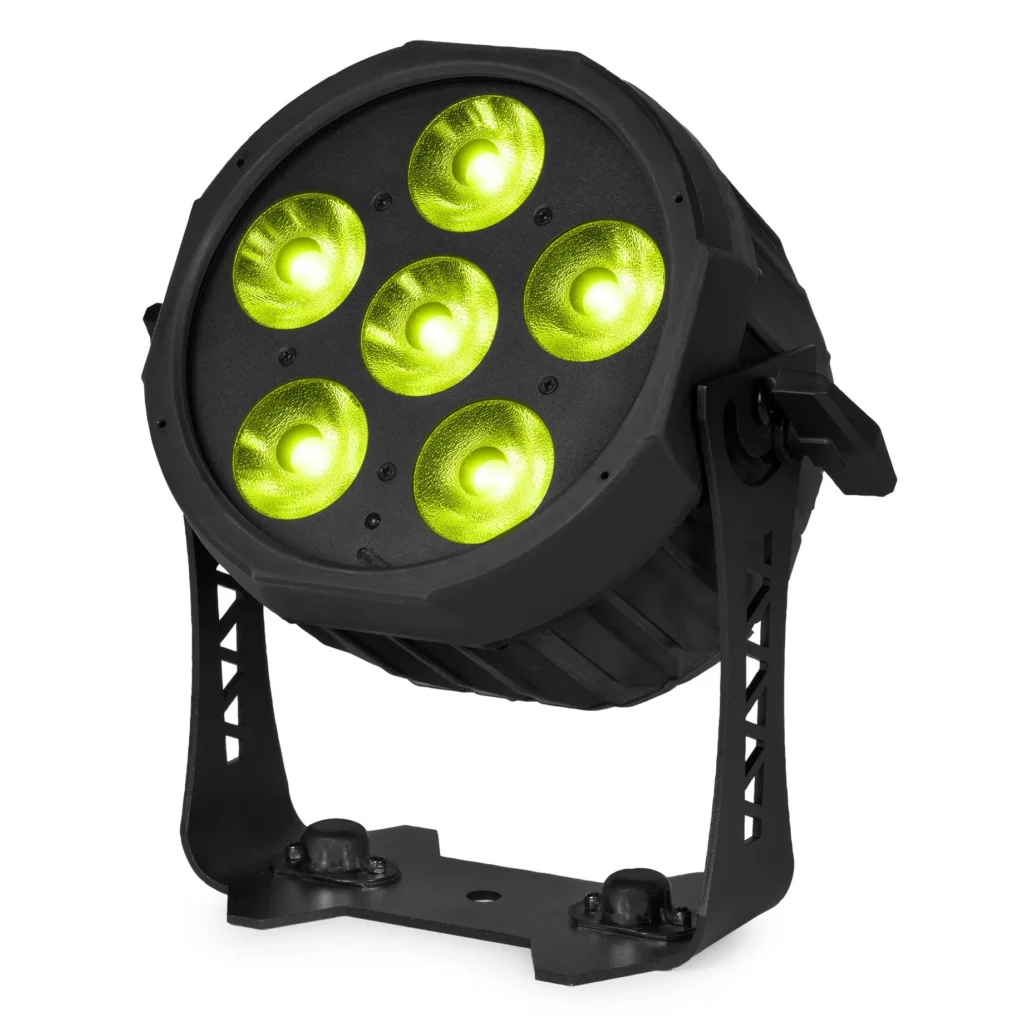

BEAMZPRO WX66 LED BATTERY PAR IP65 6x 20W RGBALC

SKU 150.877B Categories , , , , Brand:

Description

The WX Series Aluminium Outdoor PARs are powerful, professional-grade fixtures designed for both indoor and outdoor architectural and event lighting. Each unit is equipped with high-power LEDs, delivering intense, vibrant colour mixing for illuminating buildings, façades, stages, and decorative surfaces.
Built for reliable outdoor performance, the WX Series features a water-resistant design with watertight internal gaskets and weatherproof power and data in/out connections. The rugged die-cast aluminium housing provides efficient fanless cooling, ensuring silent operation while maintaining optimal heat dissipation.
All models are fitted with a clear OLED display for easy configuration, wireless DMX for flexible control options, and a durable quick-lock mounting bracket allowing installation in virtually any position.

Features

  • Weatherproof PAR in die-cast aluminium housing
  • 6x 20W 6-in-1 LEDs
  • RGBALC colour mixing
  • Control panel with OLED display
  • Built-in wireless receiver/transmitter for wireless DMX
  • CCT correction settings
  • 16.7 million colour range
  • Electronic dimming: 0-100% flicker free
  • Master/Slave function
  • Waterproof IP65 for outdoor use
  • Waterproof connectors
  • Magnets for frost filter
  • Including Omega Quick Lock bracket

Product Documents

Product Specification

  • Colour: Black
  • Type: Aluminium Par
  • Light source: LED par — 6x 20W RGBALC LED
  • Colour Temperature: 2 – 10 K
  • Illuminance: 25095 lx @ 1m
  • Beam angle: 20°
  • Zoom: No
  • Flash Per Second: 1 – 20 Hz
  • Control modes: Auto programs, DMX, Manual, Wireless DMX
  • DMX Channels: 2, 4, 6, 9
  • RDM: Yes
  • Wireless DMX protocol: Eazylink, WDMX
  • DMX connector: 3-pin XLR, 5-pin XLR
  • Input connections: 1x Power – Powerconnector TR1 IP65 (A)
  • Input connections: 1x DMX – 3-pin XLR IP65 (M)
  • Input connections: 1x DMX – 5-pin XLR IP65 (M)
  • Output connections: 1x Power – Powerconnector TR1 IP65 (B)
  • Output connections: 1x DMX – 3-pin XLR IP65 (F)
  • Output connections: 1x DMX – 5-pin XLR IP65 (F)
  • Display type: OLED
  • Cooling: Convection
  • IP rating: IP65
  • Dimensions: 210 x 230 x 170 mm (W x D x H)
  • Weight: 4 kg
  • Included Accessories: Mounting bracket
  • Included Accessories: Remote control (wireless)
  • Included Accessories: Remote control (wireless)
