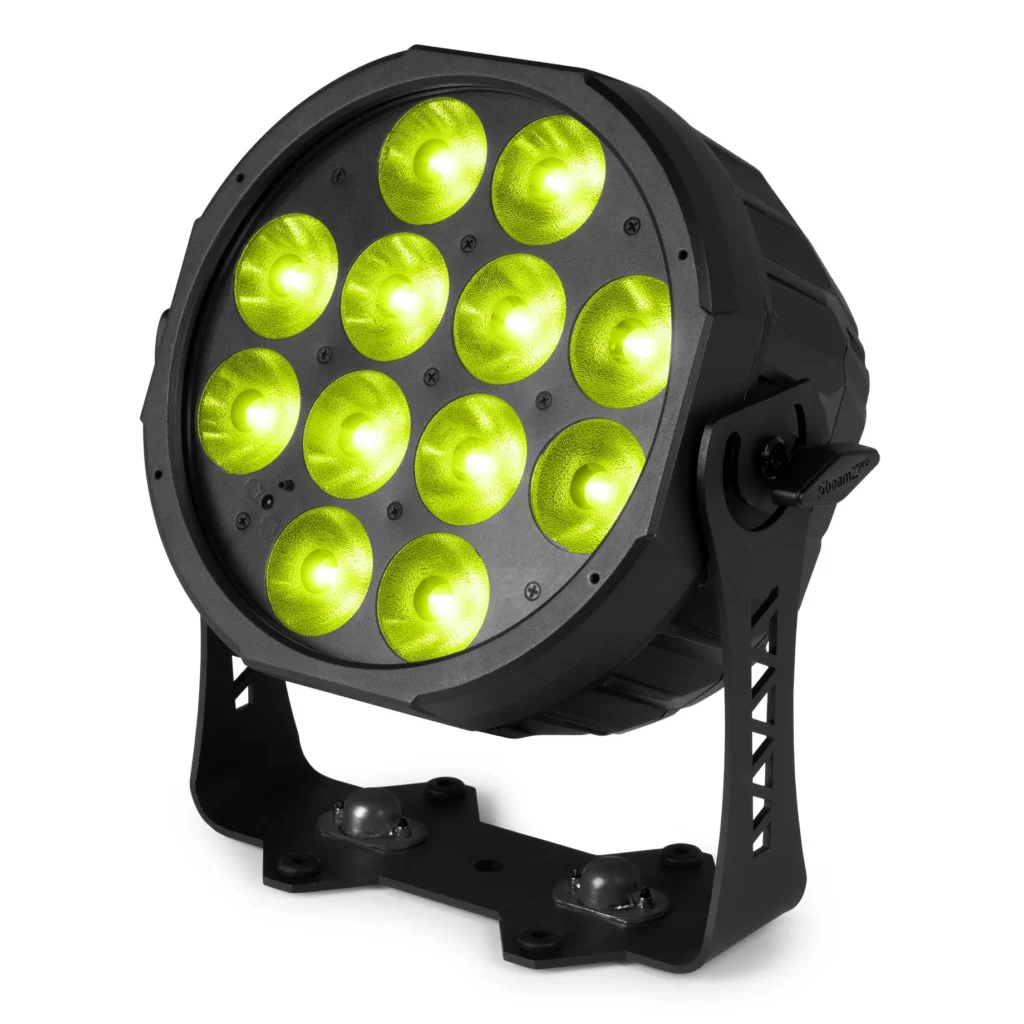

BEAMZPRO WX126 LED PAR IP65 12x 20W RGBALC

Enquire Now
SKU 150.886B Categories , , , , Brand:

Description

The WX Series Aluminium Outdoor PARs are powerful, professional-grade fixtures designed for both indoor and outdoor architectural and event lighting. Each unit is equipped with high-power LEDs, delivering intense, vibrant colour mixing for illuminating buildings, façades, stages, and decorative surfaces.
Built for reliable outdoor performance, the WX Series features a water-resistant design with watertight internal gaskets and weatherproof power and data in/out connections. The rugged die-cast aluminium housing provides efficient fanless cooling, ensuring silent operation while maintaining optimal heat dissipation.
All models are fitted with a clear OLED display for easy configuration, wireless DMX for flexible control options, and a durable quick-lock mounting bracket allowing installation in virtually any position.

Features

  • Weatherproof PAR in die-cast aluminium housing
  • 12x 20W 6-in-1 LEDs
  • RGBALC colour mixing
  • Control panel with OLED display
  • Built-in wireless receiver/transmitter for wireless DMX
  • CCT correction knob
  • 16.7 million colour range
  • Electronic dimming: 0-100% flicker free
  • Master/Slave function
  • Waterproof IP65 for outdoor use
  • Waterproof connectors
  • Magnets for frost filter
  • Including Omega Quick Lock bracket

Product Documents

Product Specification

  • Colour: Black
  • Type: Aluminium Par
  • Light Source: LED Par
  • LED: 12 × 20W RGBALC LED
  • Colour Temperature: 2–10K
  • Illuminance: 49,029 lx @ 1m
  • Beam Angle: 20°
  • Zoom: No
  • Flash Per Second: 1–20Hz
  • Control Modes: Auto Programs, DMX, Manual, Wireless DMX
  • DMX Channels: 2, 4, 6, 9
  • RDM: Yes
  • Wireless DMX Protocol: Eazylink, WDMX
  • DMX Connector: 3-pin XLR, 5-pin XLR

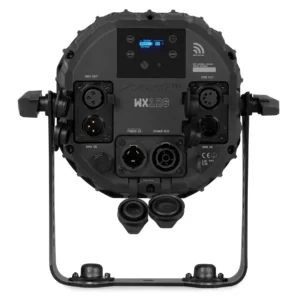

  • Input Connection: 1 × Power – Powerconnector TR1 IP65 (A)
  • Input Connection: 1 × DMX – 3-pin XLR IP65 (M)
  • Input Connection: 1 × DMX – 5-pin XLR IP65 (M)
  • Output Connection: 1 × Power – Powerconnector TR1 IP65 (B)
  • Output Connection: 1 × DMX – 3-pin XLR IP65 (F)
  • Output Connection: 1 × DMX – 5-pin XLR IP65 (F)
  • Display Type: OLED
  • Cooling: Convection
  • IP Rating: IP65
  • Dimensions: 246 × 280 × 217mm (W × D × H)
  • Weight: 5.2kg
  • Included Accessories: Mounting Bracket, Wireless Remote Control
