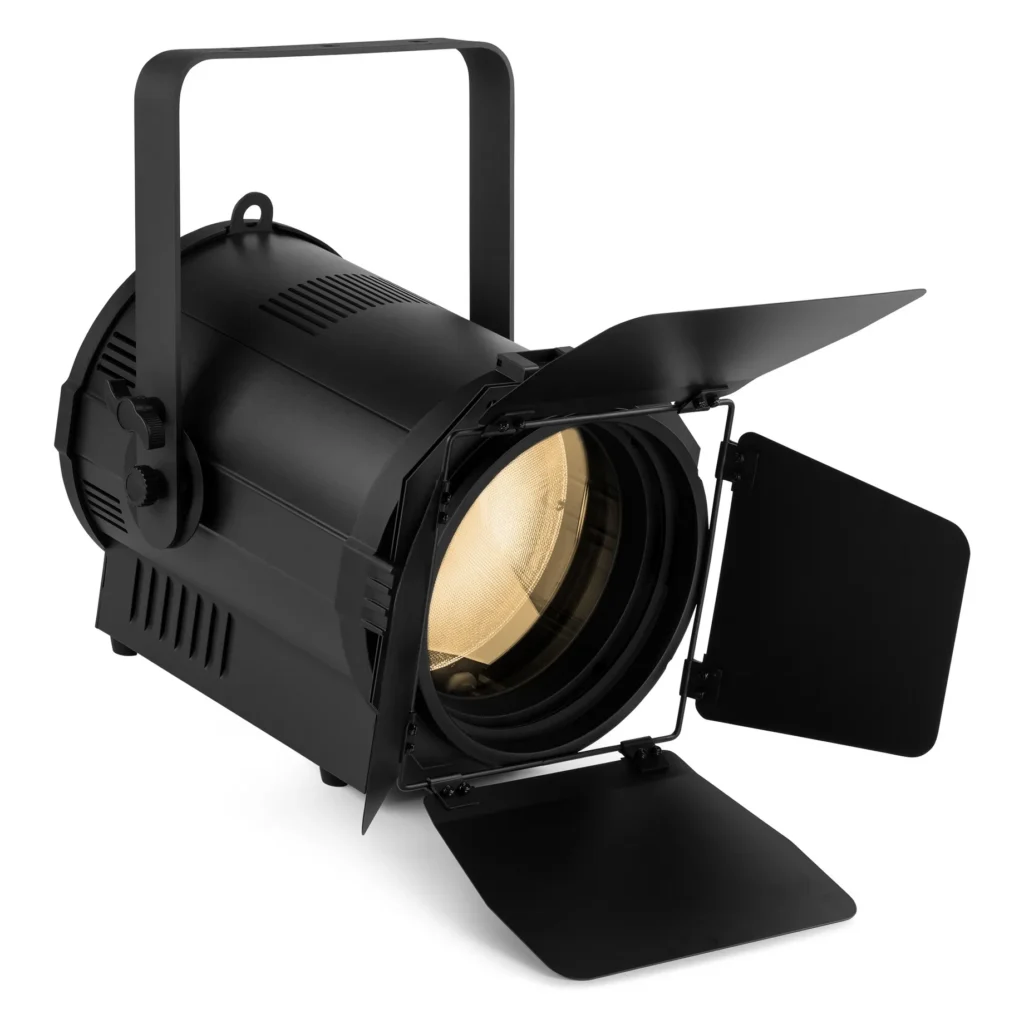

BEAMZPRO BTF200Z LED FRESNEL ZOOM 1x 200W WW IP20

Enquire Now
SKU 151.378B Categories , , , Tag Brand:

Description

The BeamZ BTF200Z Fresnel Zoom uses a high power single source LED engine to provide a smooth and even field of warm white light, providing a modern replacement for traditional fresnels. The BTF200Z is equipped with high-quality optics, a motorized 15-60 degree zoom function and is both dimmable and able to be operated as a strobe up to 19 flashes per second. Ideal for use in theatres, studios, museums, exhibitions or any stage setting that requires smooth warm white output from an energy saving fixture with exceptionally long life. Features Powerconnector in&out and DMX controllability. Supplied with barndoors for beam shaping and glare reduction, safety cord and colour frame.

Features

  • 200W Warm White COB LED
  • Colour Temperature: 3200K
  • Lifetime LED: 50.000 hours
  • 15° to 60° Motorized zoom
  • Compact and lightweight Aluminium body
  • HQ optical system
  • CRI 97 (Colour Rendering Index) TLCI up to 98
  • 16 bit dimming via DMX
  • Flicker free with selectable PWM
  • Dimmer curves selectable
  • Control Panel: LED Display
  • DMX (3-pin) or manual control options
  • Intelligent temperature control for silent operation
  • Power connector in & out
  • Including barndoor, safety cord and colour frame

Product Documents

Product Specification

  • Product colour: Black
  • Lightsource: Single colour LED
  • Colour temperature: 3200K
  • Colours: Warm White
  • LED Power (single LED): 200W
  • Quantity of LEDs: 1
  • Beam angle min (degrees): 15
  • Beam angle max (degrees): 60
  • Illuminance: 45750
  • Flash rate per second: 1 – 19Hz
  • DMX Channels: 2, 3, 4, 5
  • DMX Connector: 3-pin XLR
  • Modes: DMX
  • IP rating: IP20
  • Cooling: Temperature controlled fan
  • Display: LED
  • Power Plug: P-Con
  • Power consumption: 1.5 – 0.8A
  • Power Supply: 100-240VAC 50/60Hz
  • Dimensions (L x W x H): 315 x 296 x 330mm
  • Weight (kg): 9
  • Accessories: Mounting bracket, Safety cord
