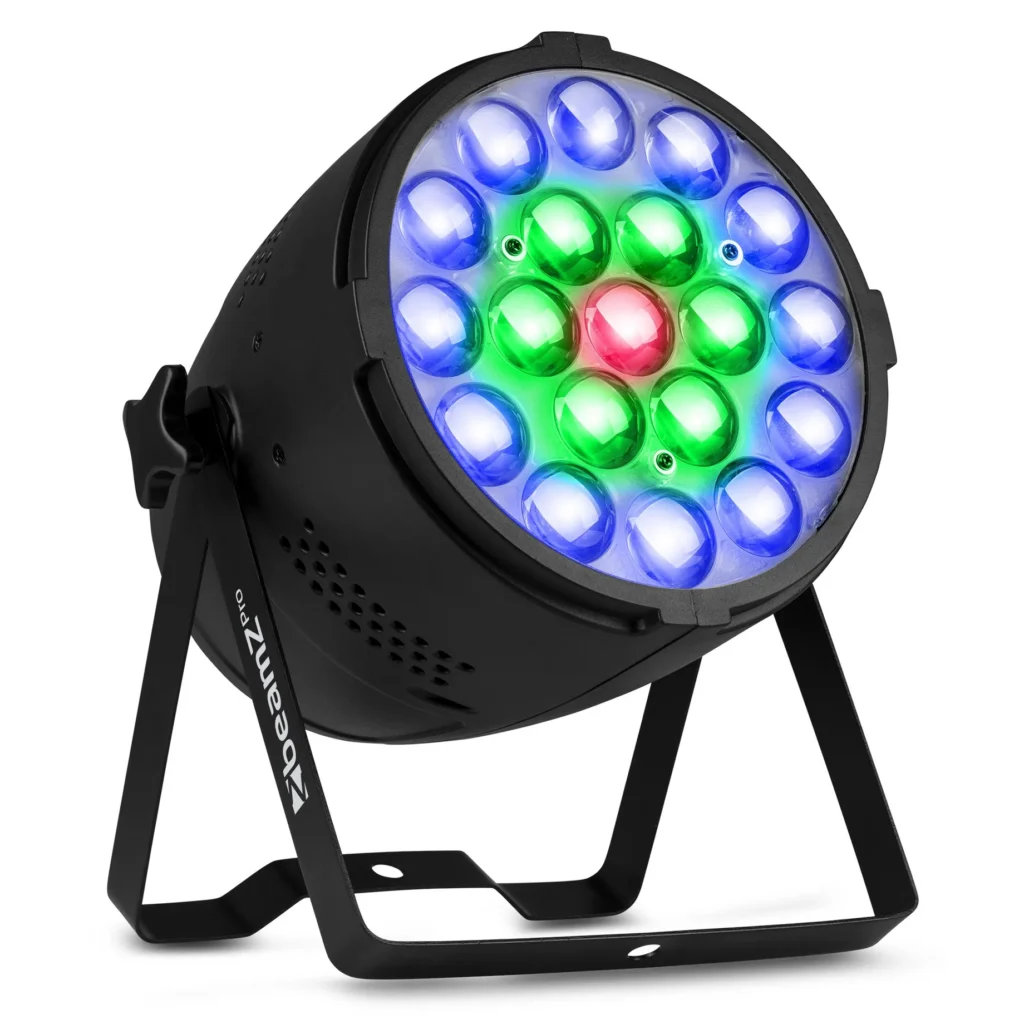

BEAMZPRO BAC552Z LED PAR ZOOM IP20 19x 15W 4in1 RGBW

SKU 151.511B Categories , , , Brand:

Description

The BAC550Z is part of a new generation of Pro LED PAR effects, designed for different purposes such as stage and architectural lighting. It can be operated via various DMX settings in 3 separate controllable LED zones. Due to the colour technology this light has 19 LED modules with big lenses, so you have the ability to mix any colour! The BAC550Z features a 9° – 30° zoom angle enabling the fixture to have fantastic beam or wash effects. The extra Power Connector output enables you to simply link the power of multiple units together into a single socket.

Features

  • 19x 15W 4-in-1 LEDs
  • RGBW colour mixing
  • Motorized zoom
  • Zoom range: 8° – 35°
  • 3 separate controllable LED zones
  • 0-100% electronic dimmer
  • Lightweight aluminium housing
  • Low noise and efficient cooling system
  • DMX and Stand-alone mode
  • Master/slave function
  • DMX in/output via 3-pin XLR
  • Pre-programmed shows
  • Sound activated with adjustable sensitivity
  • Auto mode with adjustable speed
  • Control panel with LED display
  • P-Con input/output
  • Double bracket also acts as floor stand

Product Documents

Product Specification

  • Product colour: Black
  • Light source: 4-in-1 LED
  • Colours: Red, Green, Blue, White
  • LED power (single LED): 15W
  • Quantity of LEDs: 19
  • Beam angle: Min: 8°
  • Beam angle: Max: 35°
  • Field angle: min: 15°
  • Field angle: max: 58°
  • Illuminance: 96.513 lx @ 1m
  • Flash rate per second: 1 – 23Hz
  • DMX channels: 10, 18
  • DMX connection: 3-pin XLR
  • Modes: Automatic programs, DMX, Master/Slave
  • Cooling: Temperature controlled fan
  • Display: LED
  • Power plug: P-Con
  • Power consumption: 2.69 – 1.44A
  • Power supply: 100-240VAC 50/60Hz
  • Dimensions (L x W x H): 250 x 270 x 320mm
  • Weight (kg): 4.3000
  • Included accessories: Mounting bracket, Power cable
