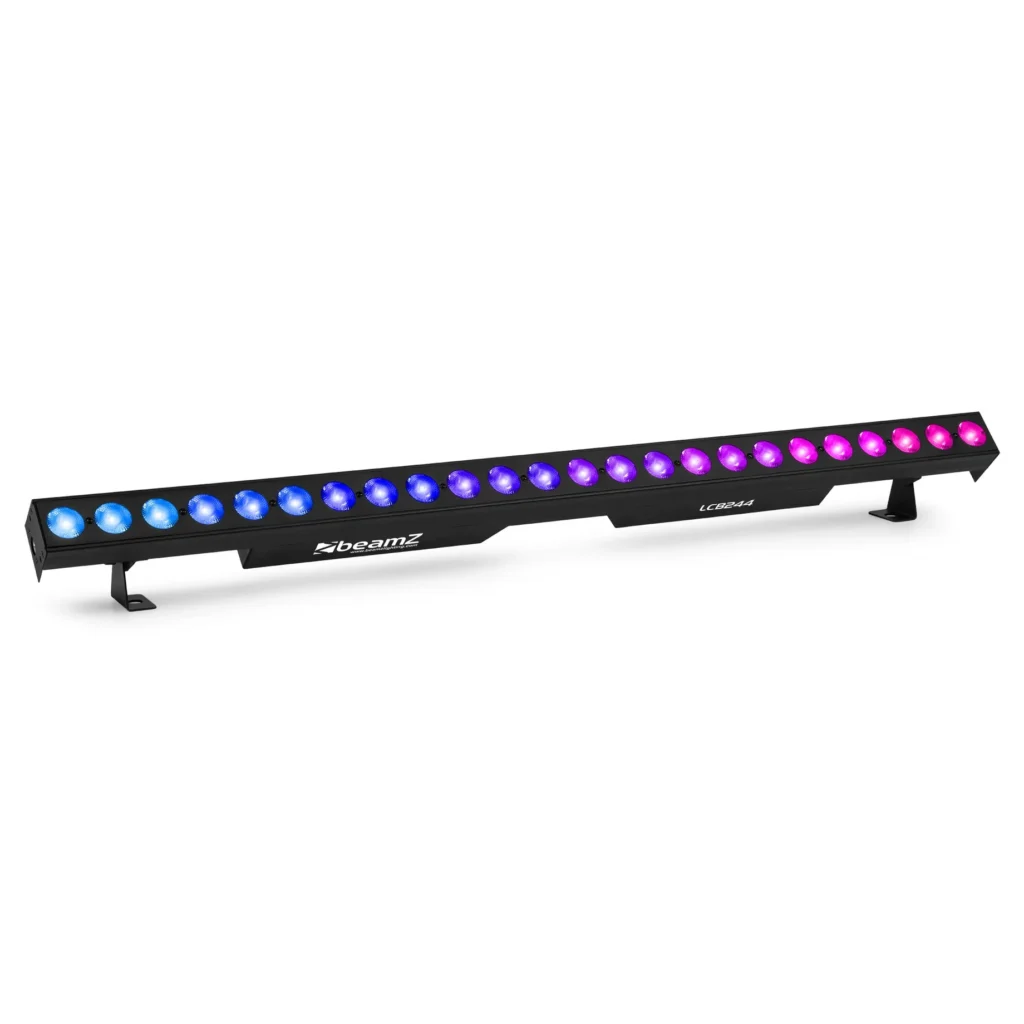

BEAMZ LCB244 LED BAR IP20 24x 4W RGBW

SKU 150.575B Categories , , , , Brand:

Description

The LCB244 is a LED bar with 4-in-1 RGBW LEDs. The unit is divided in 8 separately controllable sections. While using the fixture in stand-alone mode there are 54 pre-programmed shows that you can run automatically or sound activated, pick from the pre-set colour macros or create your own mixture of colours in RGBW mode. The extra P-Con output enables you to simply link the power of multiple units together into a single socket. Convection cooling for noiseless operation!

Features

  • 24x 4W 4-in-1 LEDs
  • RGBW Colour mixing
  • Colour presets
  • Pre programmed shows
  • Electronic Dimming: 0 – 100%
  • DMX and Stand-alone mode
  • Master/slave function
  • Sound activated with adjustable sensitivity
  • Auto mode with adjustable speed
  • DMX in/output via 3-pin XLR
  • Control panel with LED display
  • Aluminium housing
  • Powerconnector input/output
  • Incl. Quick Lock Brackets

Product Documents

Product Specification

  • Product colour: Black
  • Light source: 4-in-1 LED
  • Colours: Red, Green, Blue, White
  • LED power (single LED): 4W
  • Quantity of LEDs: 24
  • Beam angle: 11°
  • Field angle: 24°
  • Illuminance: 13.157 lx @ 1m
  • Flash rate per second: 1 – 23Hz
  • Modes: Automatic programs, DMX, Manual, Master/Slave
  • Sound to light mode: Yes
  • RDM: Yes
  • DMX channels: 4, 6, 9, 32, 36
  • DMX connection: 3-pin XLR
  • Daisy chain: Yes (max. 6 bars)
  • IP rating: IP20
  • Cooling: Convection
  • Display: LED
  • Power plug: P-Con
  • Power consumption: 1.983 – 0.912A
  • Power supply: 100-240VAC 50/60Hz
  • Dimensions (L x W x H): 1000 x 55 x 105mm
  • Weight (kg): 2.4500
  • Included accessories: Mounting bracket, Power cable
