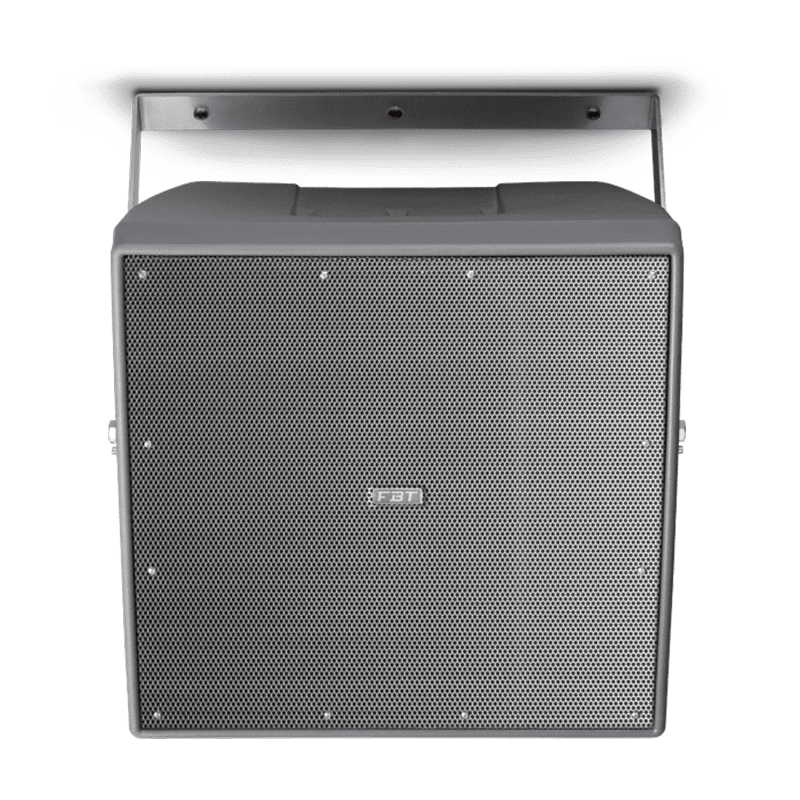

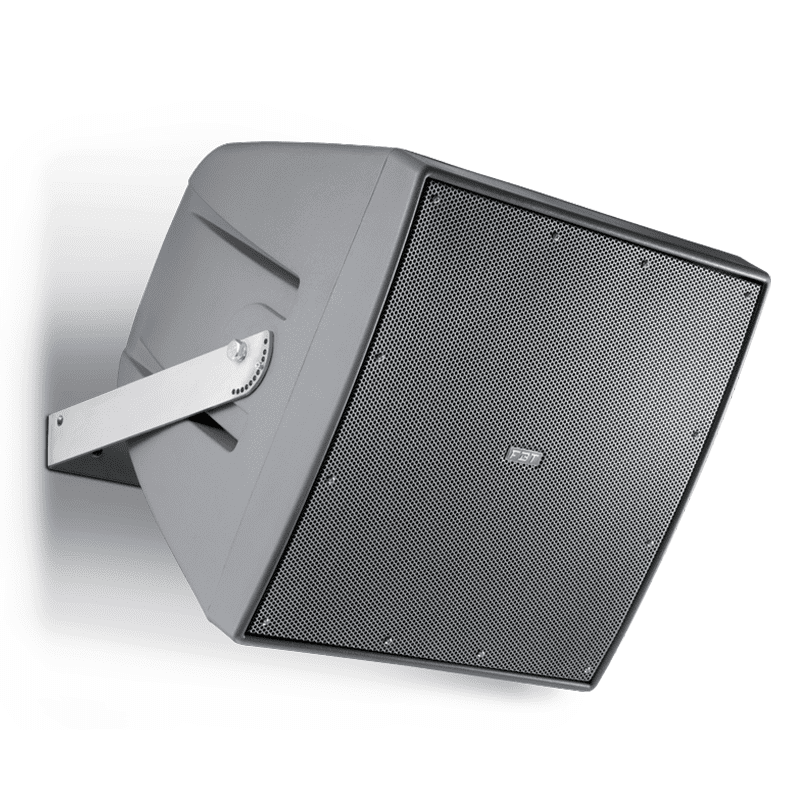

FBT – SHADOW112CT 12in PASSIVE MULTIPURPOSE HIGH PERFORMANCE SPEAKER

SKU: 361.940FB

The SHADOW series is renewed by important and significant updates that make the range perfect for all installations where high intelligibility of alarm messages and excellent sound reproduction are required. All speakers of the new SHADOW series feature an IP55 and, due to their structure made of self-extinguishing polypropylene with UL 5VB flammability rating, are now certified according to EN54-24 standard. All models of the series have a ceramic terminal block and thermal fuse installed inside to guarantee the protection of the loudspeaker connection line in case of fire. Moreover, all connections consist of fire retardant wires that comply with EN50200 standard (with IP68 hermetically sealed cable gland). Curves and rounded edges of the SHADOW speaker reduce acoustic reflections and standing waves inside the box, improving low-frequency performance; they also keep water from settling on the covering and wind diffraction. The SHADOW series was designed primarily to provide extreme water resistance. Therefore the metal protective grid was also designed to meet this requirement. The grid consists of three layers with an external stainless steel perforated metallic part treated with a special protection, a central layer with cross-linked foam and a layer formed of a special waterproof polyester mesh.

Login to see prices

DESCRIPTION:

Product Description

The SHADOW series is renewed by important and significant updates that make the range perfect for all installations where high intelligibility of alarm messages and excellent sound reproduction are required. All speakers of the new SHADOW series feature an IP55 and, due to their structure made of self-extinguishing polypropylene with UL 5VB flammability rating, are now certified according to EN54-24 standard. All models of the series have a ceramic terminal block and thermal fuse installed inside to guarantee the protection of the loudspeaker connection line in case of fire. Moreover, all connections consist of fire retardant wires that comply with EN50200 standard (with IP68 hermetically sealed cable gland). Curves and rounded edges of the SHADOW speaker reduce acoustic reflections and standing waves inside the box, improving low-frequency performance; they also keep water from settling on the covering and wind diffraction. The SHADOW series was designed primarily to provide extreme water resistance. Therefore the metal protective grid was also designed to meet this requirement. The grid consists of three layers with an external stainless steel perforated metallic part treated with a special protection, a central layer with cross-linked foam and a layer formed of a special waterproof polyester mesh.

SPECIFICATIONS:

  • Crossover Frequency: 1.6 KHz
  • Recommended HP Filter: 50hz - 24dB oct.
  • Recommended External: 50Hz-25dB oct.
  • Frequency Response: 68hhz -20khz -6db
  • Input Connector: 4 Wire Cable
  • Low Frequency Woofer: 12 - 2.5 Coil Inch
  • Net Dimension (Wxhxd): 430x430x400mm
  • High Frequency Driver: 1 - 1.7 Coil Inch
  • Net Weight: 15 kg
  • Sensitivity (@1w/1m): 97.5 dB
  • Maximum Spl Cont/Peak: 120 / 108 dB
  • Recommended Amplifier: 600 RMS
  • Long Term Power: 300w
  • Short Term Power: 1200w
  • Nominal Impedance: 8 Ohm
  • Configuration: 2 Way

Product Documentation

361.940FB Product Manual
