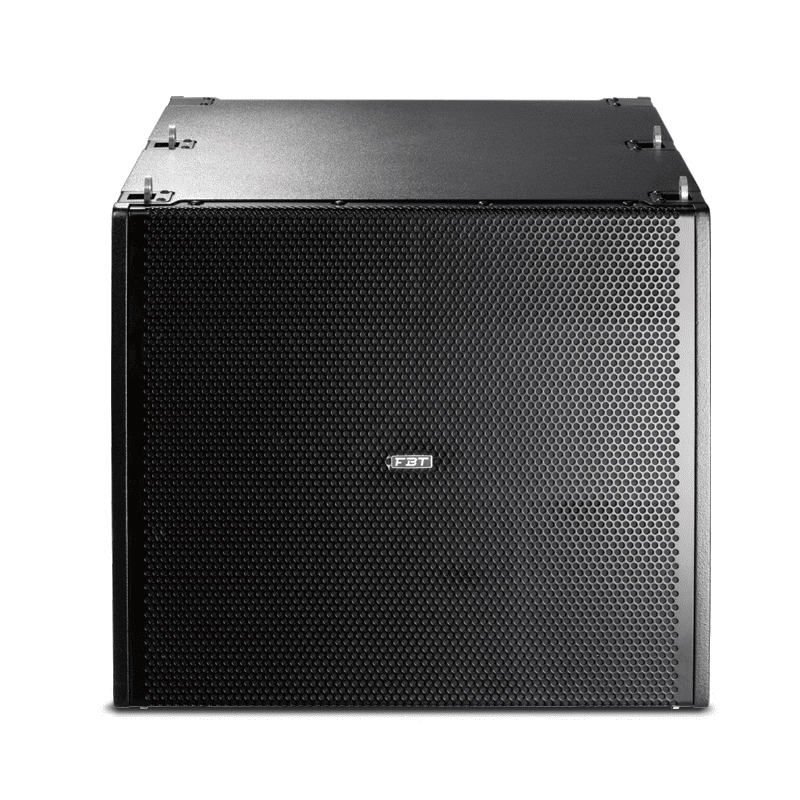

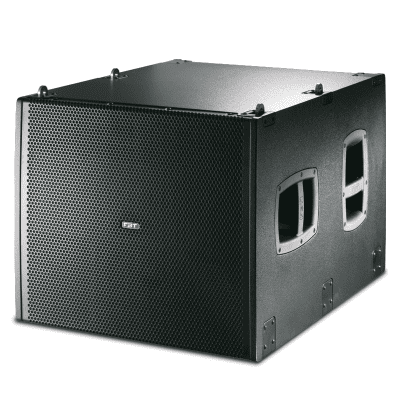

FBT MITUS118FSA 18in ACTIVE FLYING SUBWOOFER 1200W RMS

Product Description

The FBT MITUS 118FSA/FSCA powered subwoofer meet the following performance criteria: frequency response of 33Hz to 100Hz, Spl cont/peak of 135/139dB half-space. The FBT MITUS 118FSA/FSCA is a hybrid band-pass cardioid array able subwoofer design incorporating 1×18″ B&C neodymium magnet high excursion woofer with 3.5″ voice coil. Hybrid configuration permit to obtain extension and speed of vented with high SPL and acoustic filtering of band pass. The FBT MITUS118FSA/FSCA suspension hardware, fully compatible with MITUS 206LA, allows the enclosure to be suspended front (FSA model) or rear-firing (FSCA model) for easy cardioid configuration. The FBT MITUS 118FSA/FSCA provides a DSP with 8 presets; the control panel provides XLR in & link, volume, preset, delay, phase 0°-180°, ground lift switch. The FBT MITUS 118FSA/FSCA feature Baltic birch plywood
construction covered in a scratch resistant black paint. Ideal for small to medium sized applications in: Theatres, Concert Halls, Clubs, Places of Worship, Conference Rooms, Indoor Sports, Arenas & Stadiums

SPECIFICATIONS:

• <div class="tech-spec-row"><span class="key">Configuration<span class="value">: </span></span><span class="value">1 Hybrid Bandpass way
• </span></div> <div class="tech-spec-row"><span class="key">Built-in amplifier LF/HF<span class="value">: </span></span><span class="value">1200 W RMS
• </span></div> <div class="tech-spec-row"><span class="key">Built-in amplifier peak LF/HF<span class="value">: </span></span><span class="value">2400W
• </span></div> <div class="tech-spec-row"><span class="key">Frequency response<span class="value">: </span></span><span class="value">33Hz - 100Hz -6dB
• </span></div> <div class="tech-spec-row"><span class="key">Low Frequency woofer<span class="value">: </span></span><span class="value">1x18 - 3.5 coil neodymium inch
• </span></div> <div class="tech-spec-row"><span class="key">Maximum SPL cont/peak<span class="value">: </span></span><span class="value">135/139 half space dB
• </span></div> <div class="tech-spec-row"><span class="key">Dispersion<span class="value">: </span></span><span class="value">omnidirectional HxV
• </span></div> <div class="tech-spec-row"><span class="key">Input impedance<span class="value">: </span></span><span class="value">22 Kohm
• </span></div> <div class="tech-spec-row"><span class="key">Crossover Frequency<span class="value">: </span></span><span class="value">preset dependant KHz
• </span></div> <div class="tech-spec-row"><span class="key">AC Power requirements<span class="value">: </span></span><span class="value">640 VA
• </span></div> <div class="tech-spec-row"><span class="key">Input connector<span class="value">: </span></span><span class="value">XLR with loop
• </span></div> <div class="tech-spec-row"><span class="key">Power cord<span class="value">: </span></span><span class="value">5m
• </span></div> <div class="tech-spec-row"><span class="key">Net Dimension (WxHxD)<span class="value">: </span></span><span class="value">576x538x756mm
• </span></div> <div class="tech-spec-row"><span class="key">Net Weight<span class="value">: </span></span><span class="value">45kg
• </span></div> <div class="tech-spec-row"><span class="key">Transport Dimension (WxHxD)<span class="value">: </span></span><span class="value">700x690x800mm
• </span></div> <div class="tech-spec-row"><span class="key">Transport Weight<span class="value">: </span></span><span class="value">55kg</span></div>

FEATURES:

• Compact Hybrid band pass cardioid-arrayable subwoofer. Hybrid configuration permit to obtain extension and speed of vented with high SPL and acoustic filtering of band pass
• Suspension hardware fully compatible with MITUS206La allowing the enclosure to be suspended front (FSA model) or rear-firing (FSCA model) for easy cardioid configurations
• Very large area laminar-flow port to ensure no power compression and very low port turbulence
• For cardioid configurations with one SUB rear-firing and two sub front-firing, more than 15db SPL rejection can be obtained behind the array
• 18’’ (460mm) custom B&C neodymium magnet high excursion woofer with 3.5’’ (88mm) voice coil
• Frequency Response from 33Hz to 1Hz
• Class D amplifier delivering 1200WRMS
• Switch mode power supply
• DSP with 8 presets, cardioid and with infra configurations, delay

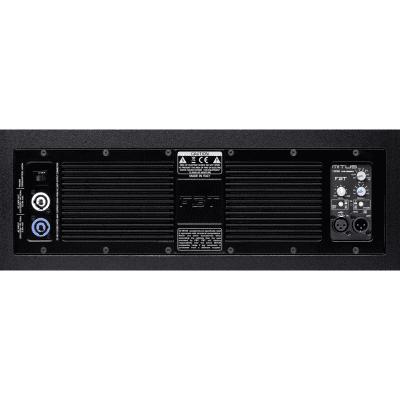

• Control panel with XLR input and link, volume, presets, delay, phase 0°-180°, ground-lift
• 5/8’’ (15mm) birch plywood enclosure, scratch resistant black paint
• Low frequency extension cabinet for the MITUS 206LA line array for flying or ground stacked configurations
• Very low profile for a 18’’ size woofer
