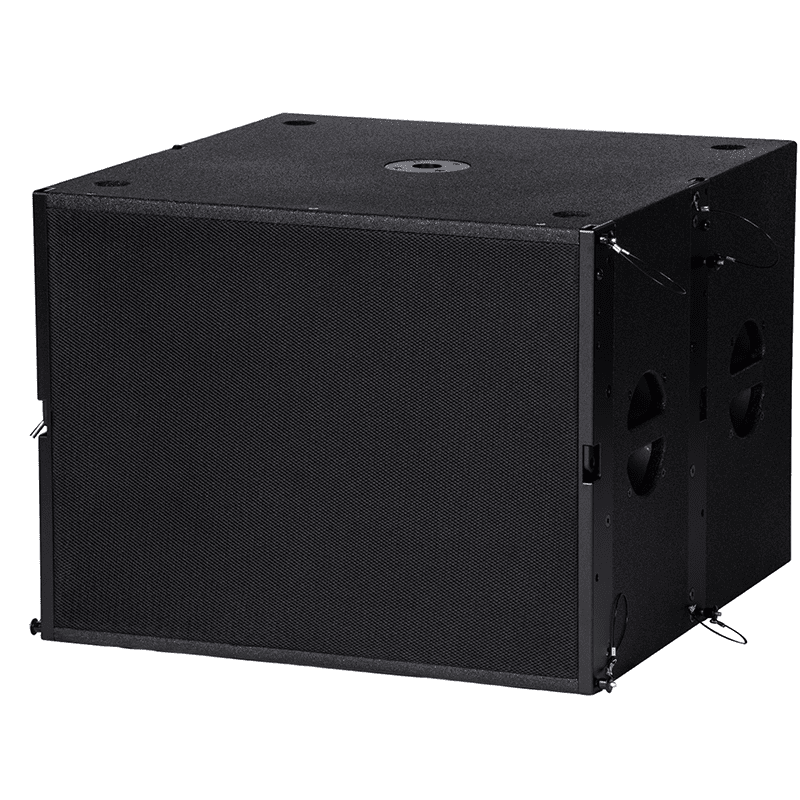

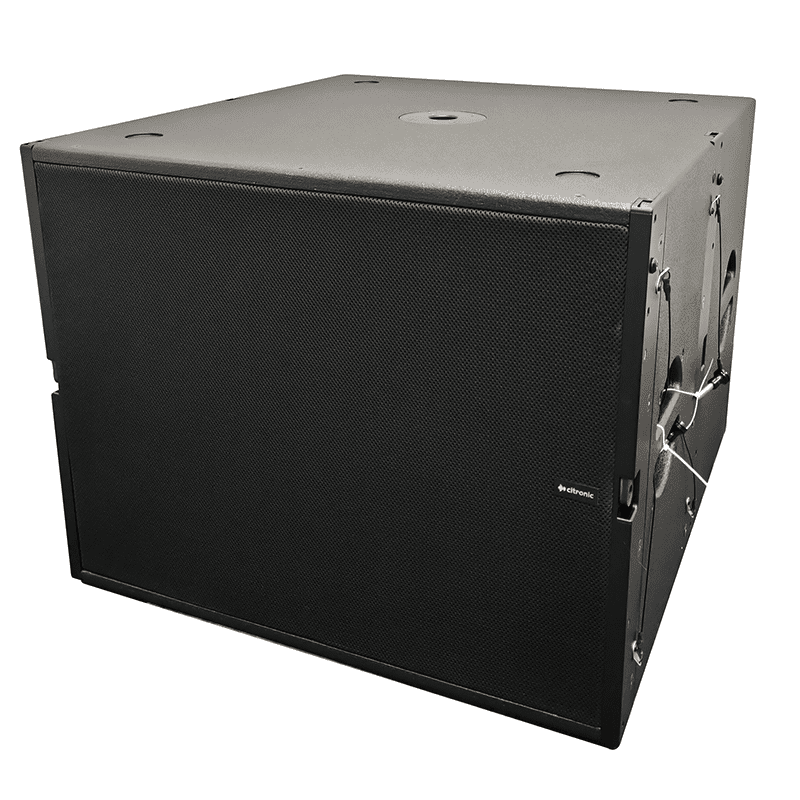

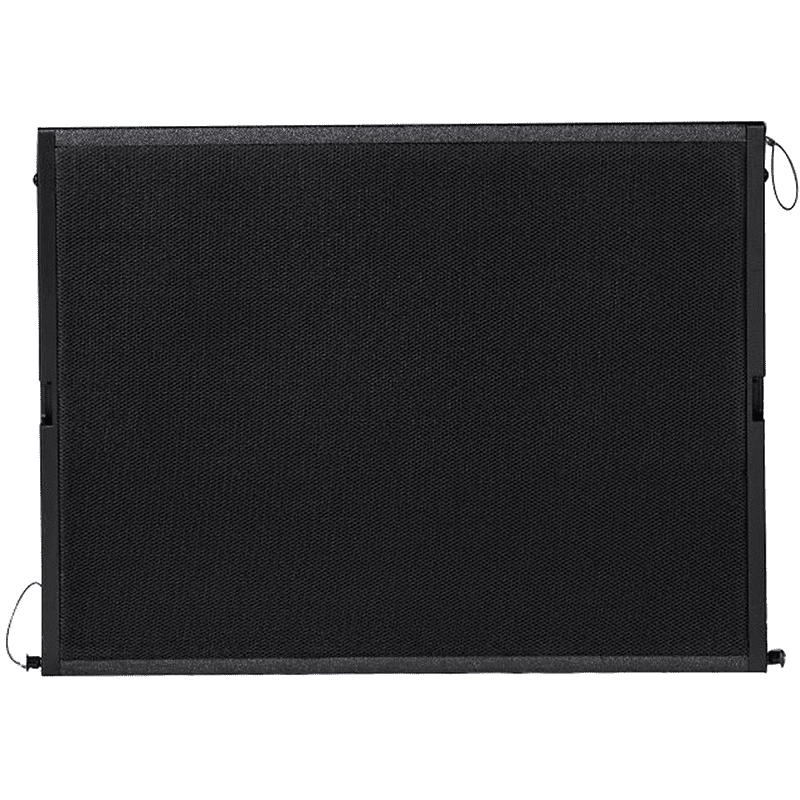

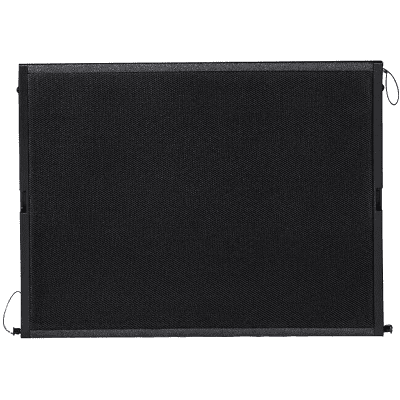

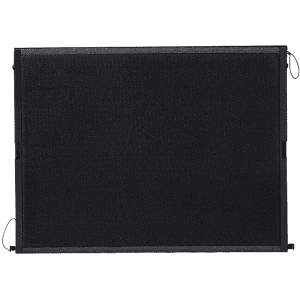

CITRONIC C-118S LINE ARRAY SUB 18in 1000W

Product Description

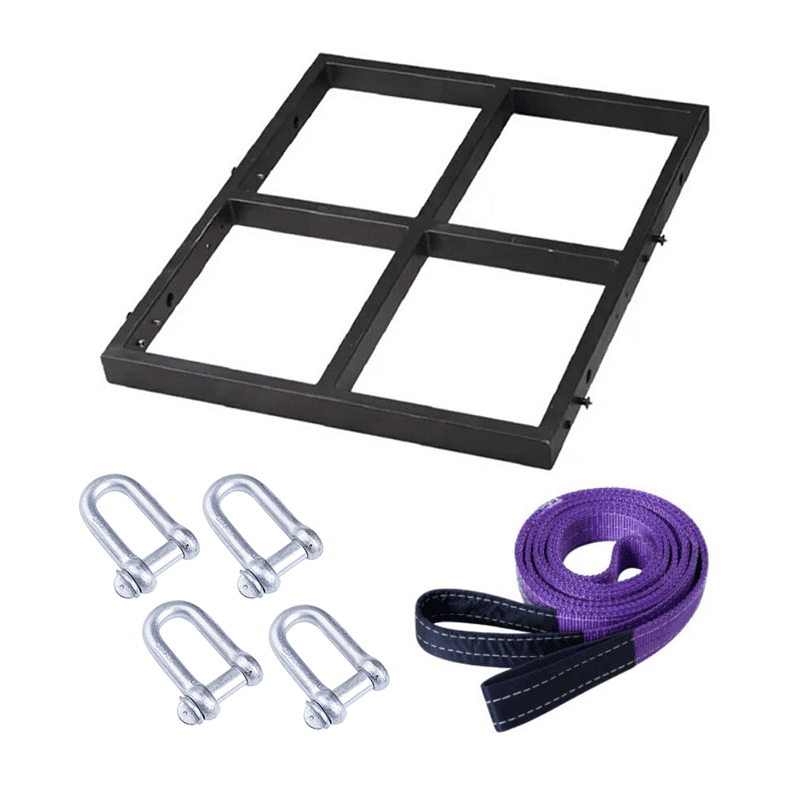

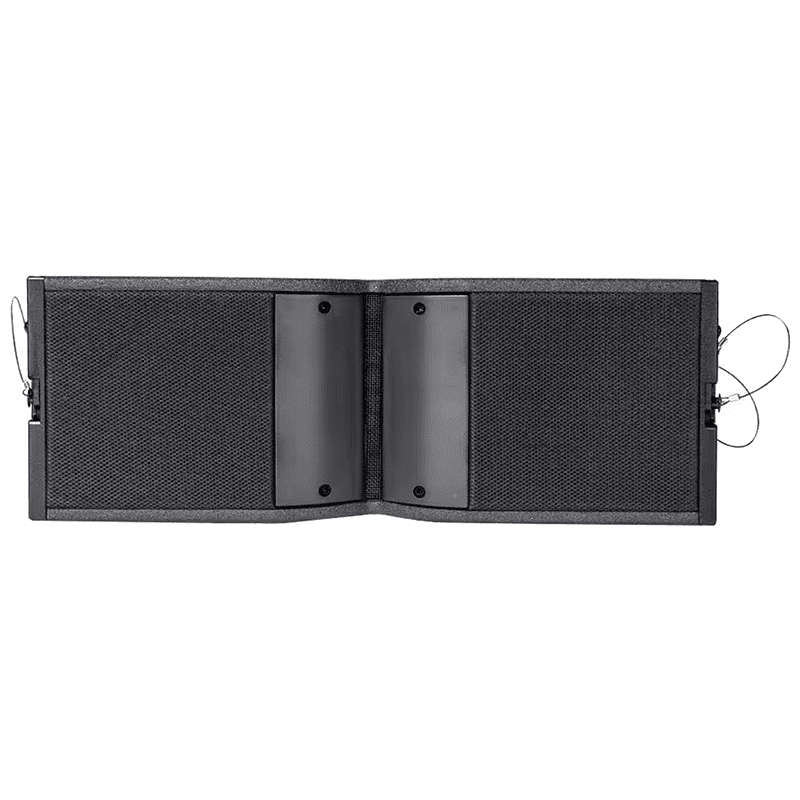

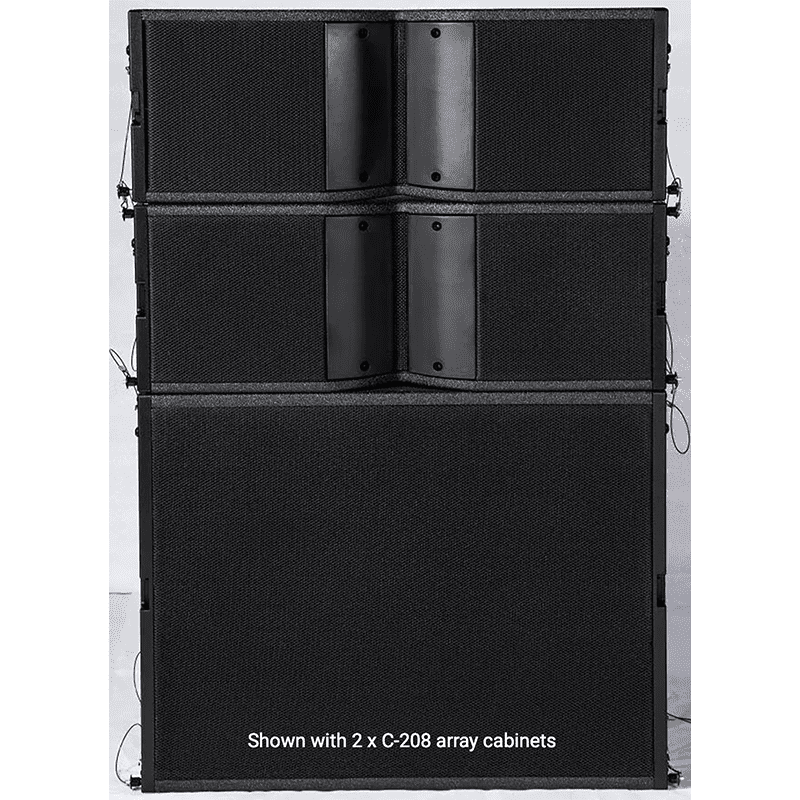

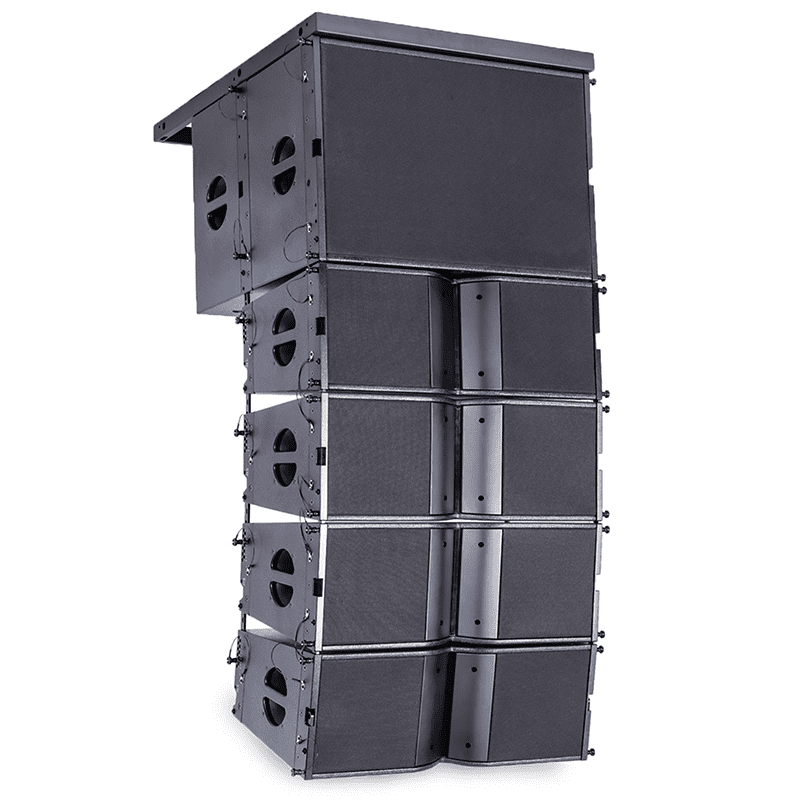

Created for high SPL output in medium to long throw applications, the C-series line array system offers uncompromised sound performance and power control in a modular and easy to configure format. The C-118S sub unit features a single 1000W 18″ driver with cast aluminium basket and double reinforced suspension, loaded into a custom computer-designed and tuned wooden enclosure with a super-tough polyurea texture finish. The subwoofer is served by an internal class-D amplifier section with inbuilt pre-set DSP to deliver 1000W of power on demand with accurate frequency and dynamics control. The C-118S can be used as a standalone active subwoofer, stacked in multiples, or flown with C-series array cabinets using the optional C-FRAME support assembly

SPECIFICATIONS:

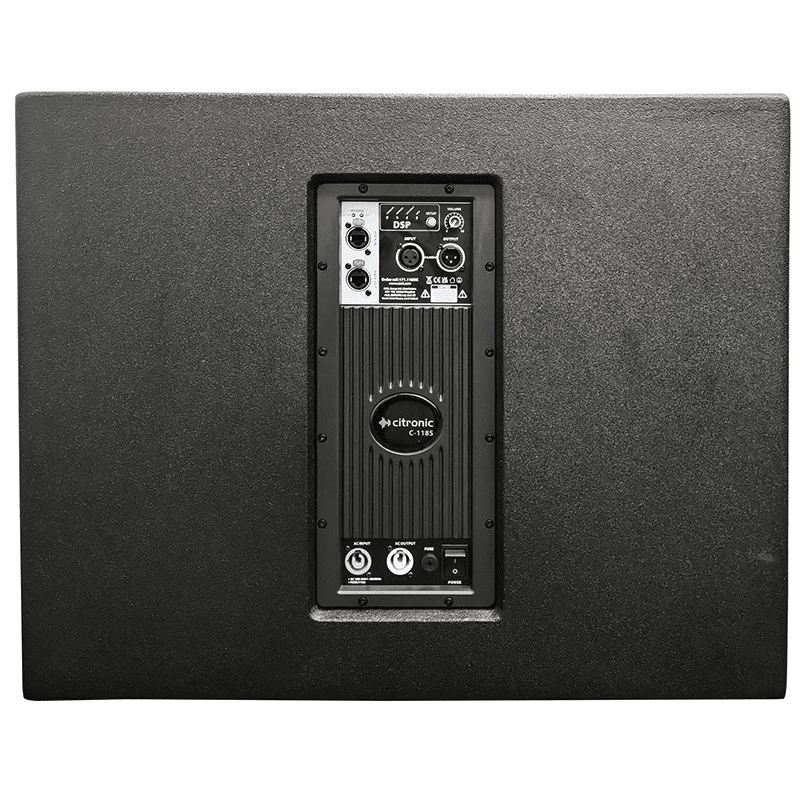

• Power supply: 230Vac, 50Hz (Powercon® in + through)
• Construction: 15mm plywood cabinet, polyurea coated
• Frequency response: 40Hz - 150Hz
• Amplifier : construction: Class-D (inbuilt DSP)
• Output power rms: 1000W
• Output power peak: 2000W
• Driver unit: 450mmØ (18") driver, Al frame, ceramic magnet
• Voice coil: 100mmØ (4")
• Sensitivity: 98dB
• SPL max.: 131dB (@ 1W/1m)
• Dimensions: 710 x 690 x 545mm
• Weight: 54kg

FEATURES:

• Internal 1000Wrms digitally controlled amplifier
• Integral pinlock array hardware and carry handles
• Polyurea-coated wooden cabinet
• Single heavy duty sub driver
• Top panel 35mmm pole mount socket
