BEAMZ – FUZE75B FUZE BEAM LED MOVING HEAD

SKU: 150.384B

The Fuze75B Beam LED Moving Head is a lightweight, compact and ultra-fast moving fixture with an extremely sharp and narrow beam. The Fuze75B is equipped with a powerful 75W LED and features a frost filter which converts the tight beam to a wide wash for different applications. The 2 degree beam angle make this the ideal fixture to use for long range gobo projection and sharp beam figures. Operation via DMX, Auto mode with exiting built-in light shows, Sound Active Mode or linked in Master/Slave mode. Perfect for lighting designers, DJs, bands, clubs, bars and installations where small footprint and low weight is critical.

Login to see prices Where To Buy

DESCRIPTION:

Product Description

The Fuze75B Beam LED Moving Head is a lightweight, compact and ultra-fast moving fixture with an extremely sharp and narrow beam. The Fuze75B is equipped with a powerful 75W LED and features a frost filter which converts the tight beam to a wide wash for different applications. The 2 degree beam angle make this the ideal fixture to use for long range gobo projection and sharp beam figures. Operation via DMX, Auto mode with exiting built-in light shows, Sound Active Mode or linked in Master/Slave mode. Perfect for lighting designers, DJs, bands, clubs, bars and installations where small footprint and low weight is critical.

SPECIFICATIONS:

  • Lightsource: Single colour LED
  • LED Colours: White
  • LED Power: 75
  • Quantity of LEDs : 1
  • Colour wheel: 12 colours + open
  • Dispersion: 2°
  • Illuminance: 190.000lx1m
  • Head movement:Pan: 630
  • Head movement:Tilt: 270
  • Static gobo: Quantity: 17
  • Gobo Shake: Yes
  • Prisma: 1 8 Facet
  • Flash rate per second: 1 - 11Hz
  • Modes: Automatic programs, DMX, Master/Slave
  • Sound to Light mode: Yes
  • DMX Channels: 10, 12
  • DMX Connector: 3-pin XLR
  • Display: LCD
  • IP rating: IP20
  • Cooling: Temperature controlled fan
  • Power Plug: Power-connector
  • Power consumption: 1.6 - 0.8A
  • Power Supply: 100-240VAC 50/60Hz
  • Dimensions (L x W x H): 245 x 230 x 290
  • Weight : 5.2kg
  • Accessories: DMX Cable, Mounting bracket, Power Cable, Remote control, Safety cord

FEATURES:

  • 75W High Intensity White LED
  • 10 or 12 DMX channels
  • DMX and Stand-alone mode
  • Master/slave synchronization
  • Sound activated with adjustable sensitivity
  • Auto mode
  • Beam angle 2°
  • Fresnel lens
  • Gobo Wheel: 17x metal gobos + open
  • Gobo shake function
  • 12 Colours + open
  • Rotatable 8 facet prism
  • 0-100% Electronic Dimmer
  • Pan and Tilt Ranges: 360°, 540°, 630° pan / 90°, 180°, 270° tilt movement
  • Strobe: 1-11Hz
  • Automatic pan/tilt correction
  • Reset function
  • Control panel with LCD display
  • DMX in/output via 3-pin XLR
  • Power connector input
  • Quick lock omega clamp included
  • DMX cable included
  • Power connector cable and safety cord included
  • Included remote control

Product Documentation

150.384B Product Manual

Other Models

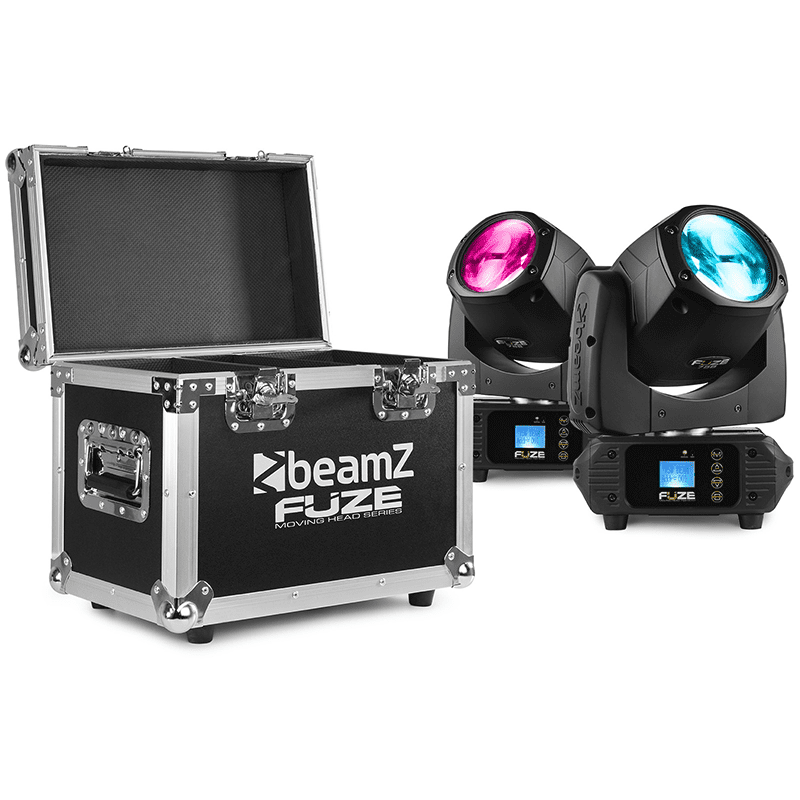

Product ImageBEAMZ - FUZE75B FUZE LED BEAM MOVING HEAD SET
