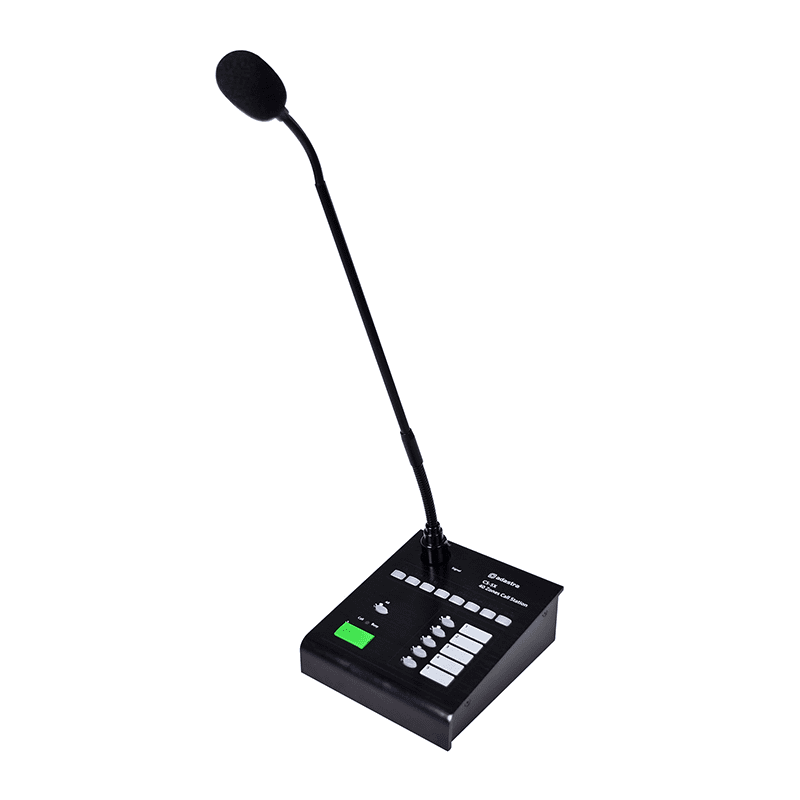

ADASTRA CS-5X CALL STATION FOR RX45

SPECIFICATIONS:

• Power supply : 24Vdc, 500mA from RJ45 or optional adaptor
• Max. connection length: 100m (CAT5 cable) or 1km with optional 24Vdc adaptor
• Capsule : Back electret condenser
• Polar pattern : Cardioid

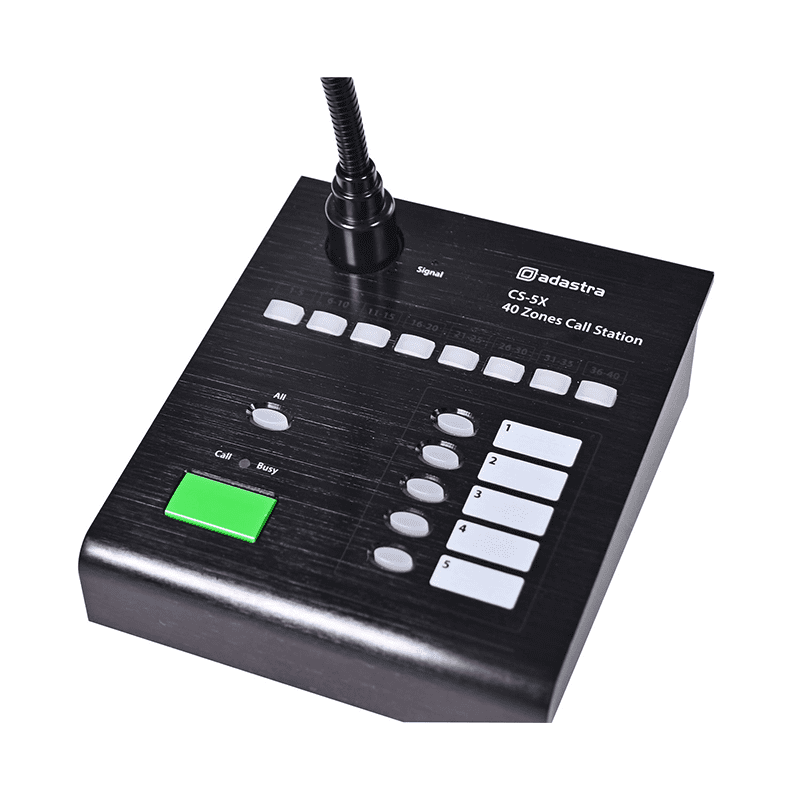

• Controls : Aux/Mic/Chime levels, chime DIP switches, group/zone/page buttons

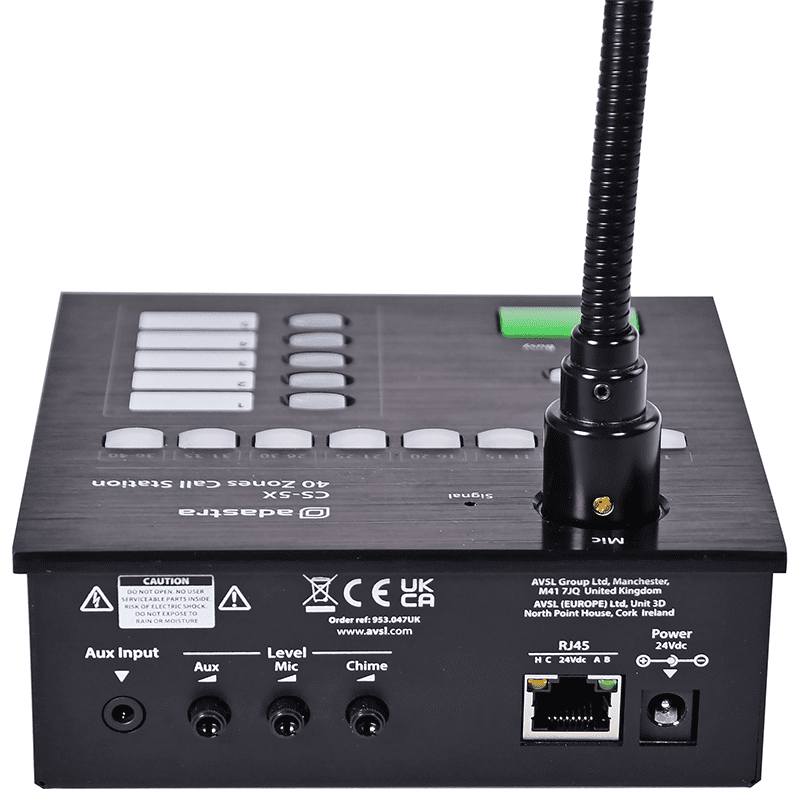

• Connectors: XLR, RJ45 (to RX45), 24Vdc power jack, 3.5mm aux in
• Frequency response : -3dB: 150Hz - 20kHz
• Input level: Mic: -46dBV, Aux: -10dBV
• Input impedance: Mic: 600 Ohms, Aux: 50k Ohms
• Output level: 10dBV
• Output impedance : balanced: 600 ohms
• S/N ratio: -60dB (all channels selected)
• Interface: RS-485 control
• Zone assign: 5 zones per RX45, any combination across 8 Group IDs
• Dimensions: 450 x 140 x 125mm
• Weight: 653g

FEATURES:

• Custom designed for the RX45 Audio matrix
• Individual and multiple paging possible up to 40 zones
• Power and signal connection via the supplied RJ45 cable
• Optional 24Vdc in for connection up to 1km from RX45

Product Documentation

953.047AD Product manual
